System Diagram [08/2019 - 08/2020]

WARNING: This page is about a different variant/trim than selected.

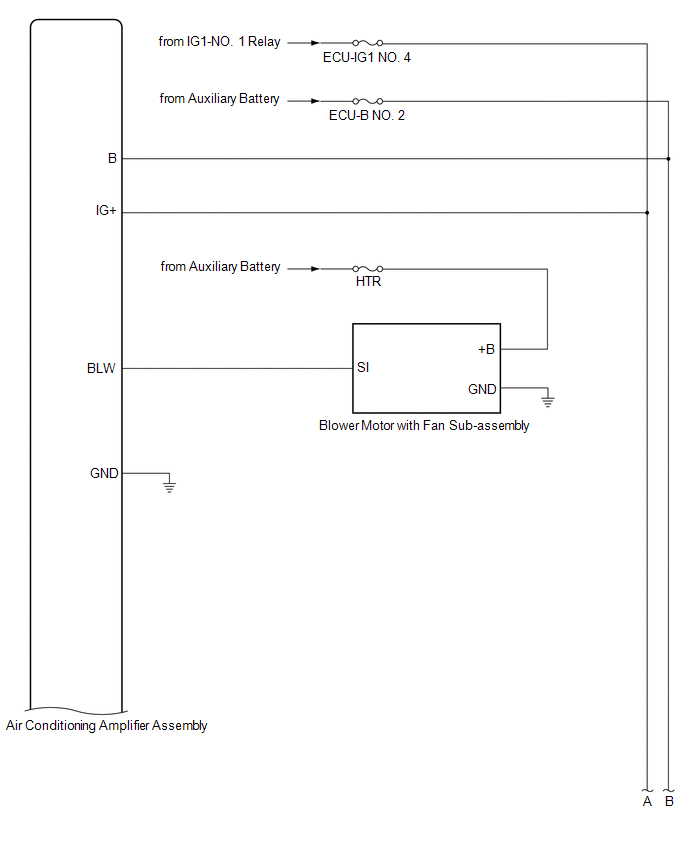

GTY944327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

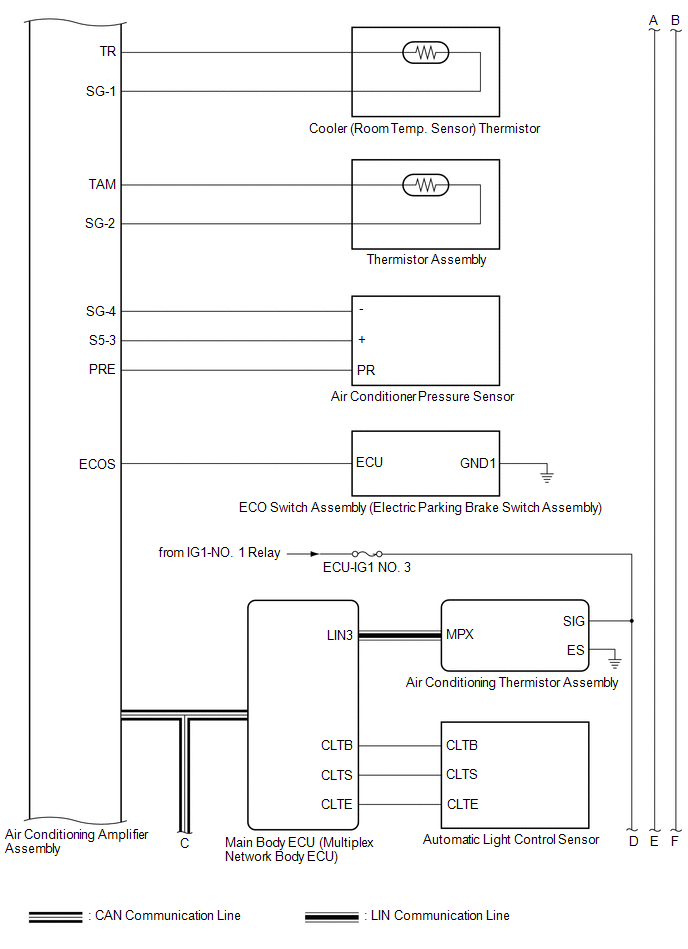

GTY925328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

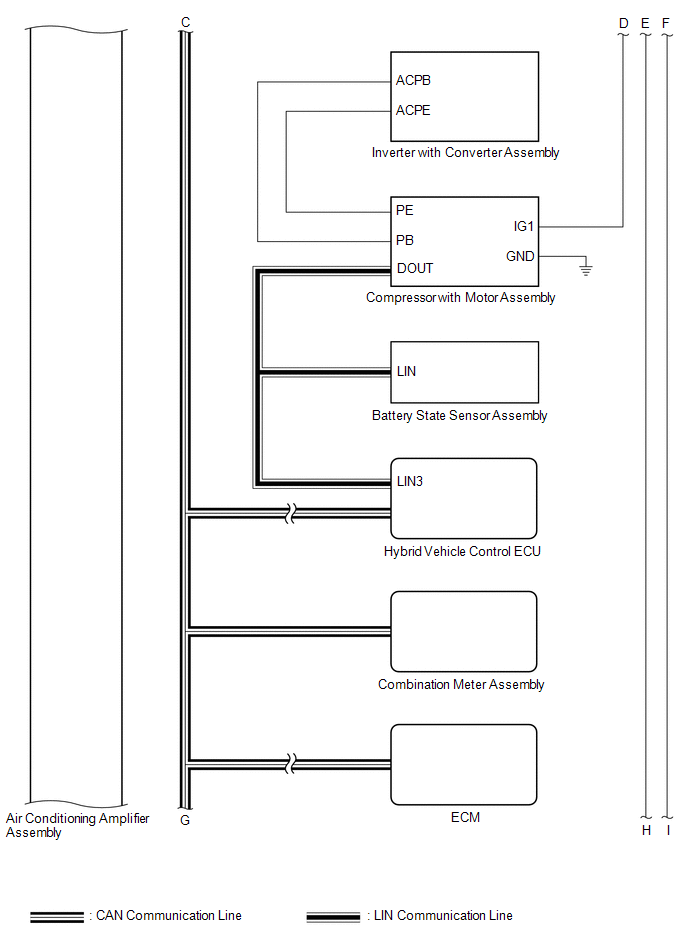

GTY911854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

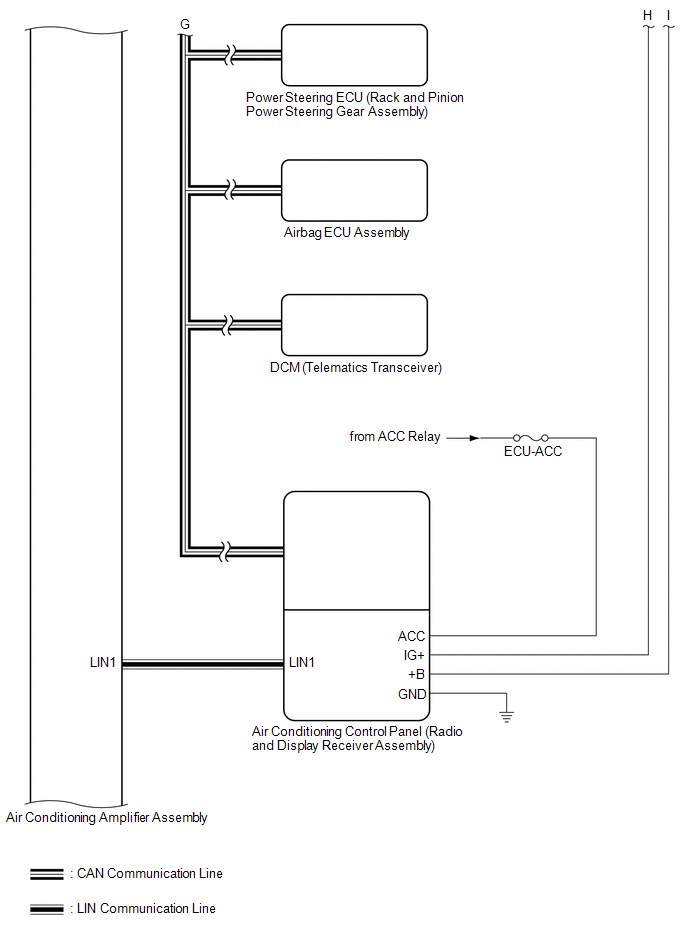

GTY840605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

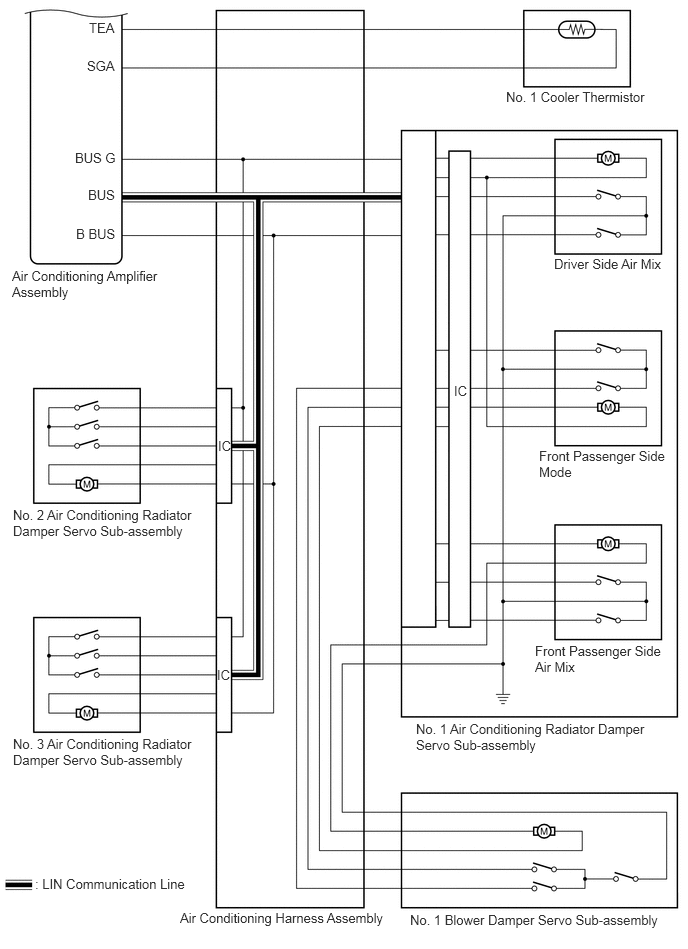

GTY837290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
