Removal [04/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - ]

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 5 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

  4. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 18 [08/2021 - ]

  5. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 6 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - ]

  6. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [04/2018 - ]

  7. REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

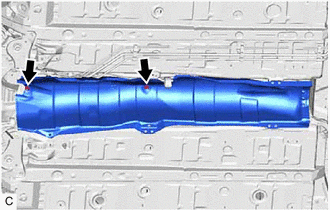

    1. Remove the 2 nuts and front lower No. 1 floor heat insulator from the vehicle body.
      GTY754790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

    Refer to REMOVAL [04/2018 - ]

  9. REMOVE NO. 1 CONSOLE BOX DUCT

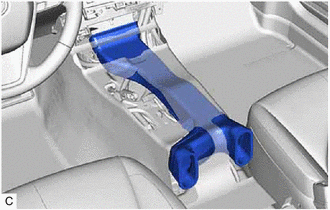

    1. Remove the No. 1 console box duct.
      GTY841344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT ENGINE ROOM MAIN WIRE

    Refer to PROCEDURE - Step 8 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - ]

  11. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.
      GTY745666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with the clip from the No. 1 transmission control cable bracket.
      GTY745665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY745662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 3 bolts and disconnect the transmission control cable assembly from the inverter with converter assembly.
      GTY769658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 nuts and disconnect the transmission control cable assembly from the vehicle body.
      GTY745664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle body.
      GTY745663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
