Installation [04/2018 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL SHIFT LEVER POSITION SENSOR
- Move the shift lever to N.

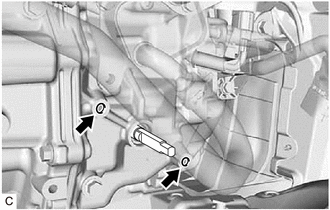

- Clean and degrease the 2 bolt holes of the hybrid vehicle transaxle assembly.
- Temporarily install the shift lever position sensor to the hybrid vehicle transaxle assembly with 2 new bolts.NOTE:
- Do not reuse the shift lever position sensor if it has been dropped or subjected to a severe impact.
- Do not allow moisture to adhere to the connector terminal.
- Install the lock plate to the shift lever position sensor with the lock nut.
Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)
- Temporarily install the control shaft lever to the shift lever position sensor.
- Turn the control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.
- Remove the control shaft lever from the shift lever position sensor.
- Align the indicator with the neutral basic line.
*a Neutral Basic Line *b Indicator *c Range of Play NOTE:The indicator of the lock plate has a certain amount of play. Align the center point of the range of play with the neutral basic line.
- Tighten the 2 bolts.
Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
- Using a screwdriver with its tip wrapped with protective tape, secure the lock nut with the lock plate.
- Install the control shaft lever and washer to the shift lever position sensor with the nut.
Torque: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)
- Connect the shift lever position sensor connector.
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
- Engage the 2 claws to install a new clip to the transmission control cable assembly.
- Using a screwdriver, engage the 4 claws and install the transmission control cable assembly to the No. 1 transmission control cable bracket.
*1 Transmission Control Cable Assembly *2 No. 1 Transmission Control Cable Bracket *a Claw (A) *b Claw (B) NOTE:- Make sure that the claws (A) of the clip are securely engaged in the grooves of the bracket.
- Make sure that the transmission control cable assembly is securely installed inside of the claws (B) of the clip.
- Connect the transmission control cable assembly to the control shaft lever with the nut.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
- INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 17
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 45
- INSTALL INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 18
- INSTALL COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 2 [08/2021 - ]
- INSPECT SHIFT LEVER POSITION SENSOR POSITION
See step 2
- ADJUST SHIFT LEVER POSITION SENSOR POSITION
See step 3
- INSPECT SHIFT LEVER POSITION
See step 2
- ADJUST SHIFT LEVER POSITION
Refer to ADJUSTMENT [04/2018 - ]
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 41
- INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 42
- INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 43
- INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 44
