Removal [04/2018 - 08/2021]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 8
REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 7
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 9
REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 10
REMOVE FRONT FENDER APRON SEAL LH
Refer to PROCEDURE - Step 11
REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [04/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021]

REMOVE NO. 1 INVERTER COOLING HOSE

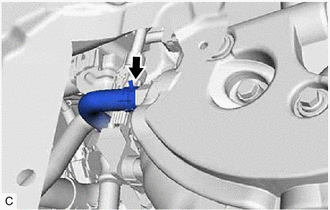

Slide the clip and remove the No. 1 inverter cooling hose from the motor cooling cooler.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE MOTOR COOLING COOLER

Remove the oil cooler union bolt and gasket to disconnect the No. 2 motor cooling pipe from the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Oil Cooler Union Bolt
*2	No. 1 Oil Cooler Tube Clamp

Remove the bolt and No. 1 oil cooler tube clamp to disconnect the No. 2 motor cooling pipe from the hose bracket.

Remove the 3 bolts to disconnect the motor cooling cooler from the No. 1 transmission control cable bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide the clip and disconnect the No. 1 motor cooling hose from the transaxle housing tube connector.

NOTE:

Make sure not to remove the No. 1 motor cooling hose from the motor cooling cooler as the motor cooling cooler may be deformed.

REMOVE NO. 2 MOTOR COOLING PIPE

Slide the clip and remove the No. 2 motor cooling pipe from the No. 2 motor cooling hose.

NOTE:

Make sure not to remove the No. 2 motor cooling hose from the motor cooling cooler as the motor cooling cooler may be deformed.
