Installation [04/2018 - ]: Procedure

1. Install a new gasket to the front exhaust pipe assembly (TWC: Rear Catalyst).
2. Connect the front exhaust pipe assembly (TWC: Rear Catalyst) to the 2 exhaust pipe supports.
3. Install the front exhaust pipe assembly (TWC: Rear Catalyst) to the exhaust manifold (TWC: Front Catalyst) with 2 new nuts.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

Refer to INSTALLATION [04/2018 - ]

1. Install a new gasket to the front exhaust pipe assembly (TWC: Rear Catalyst).
2. Connect the center exhaust pipe assembly to the 2 exhaust pipe supports.
3. Install the center exhaust pipe assembly to the front exhaust pipe assembly (TWC: Rear Catalyst) with 2 new bolts.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

1. Install a new gasket to the center exhaust pipe assembly.
2. Connect the tail exhaust pipe assembly LH to the 2 exhaust pipe supports.
3. Install the tail exhaust pipe assembly LH to the center exhaust pipe assembly with 2 new bolts.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

1. Install the center floor crossmember brace to the vehicle body with the 4 bolts.

   Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

1. Install the front center floor brace to the vehicle body with the 4 bolts.

   Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

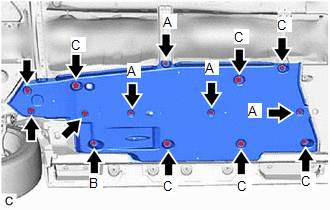

1. Install the front floor cover LH with the grommet (B) and 6 clips (C).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 3 bolts and 4 clips (A).

   Bolt

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

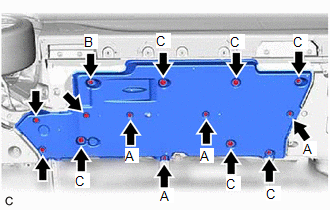

1. Install the front floor cover RH with the grommet (B) and 6 clips (C).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 3 bolts and 4 clips (A).

   Bolt

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

1. Perform "Inspection After Repair" after repairing an exhaust gas leak.

   Refer to INITIALIZATION [04/2018 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]
