Components [04/2018 - 08/2021]

WARNING: This page is about a different variant/trim than selected.

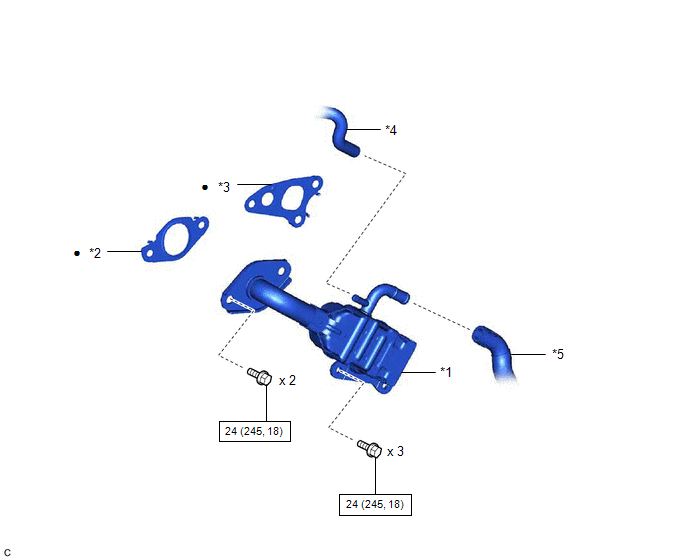

Fig 1: EGR Cooler Replacement Components With Torque Specifications [04/2018 - 08/2021]
GTY993458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 EGR COOLER ASSEMBLY *2 EGR VALVE GASKET
*3 EGR COOLER GASKET *4 NO. 4 WATER BY-PASS HOSE
*5 NO. 3 WATER BY-PASS HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
