Components [04/2018 - ]

WARNING: This page is about a different variant/trim than selected.
Fig 1: ECM Replacement Components (1 Of 2)
GTY879197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LUGGAGE TRIM SERVICE HOLE COVER - -

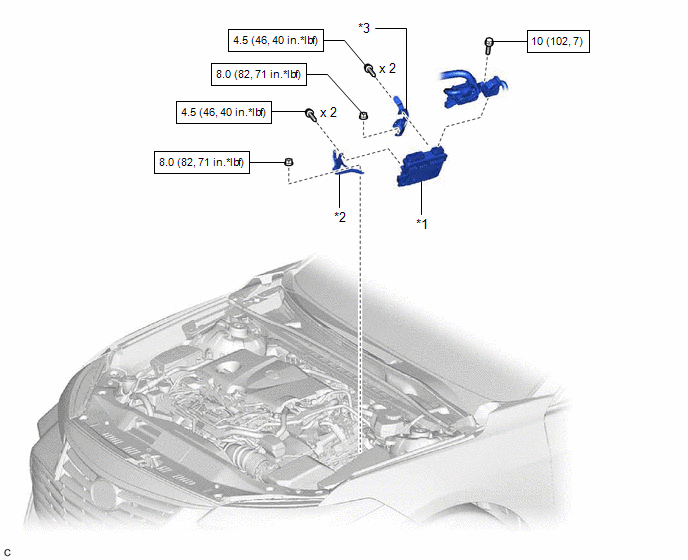

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)
GTY874713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
