Components [04/2018 - ]

WARNING: This page is about a different variant/trim than selected.

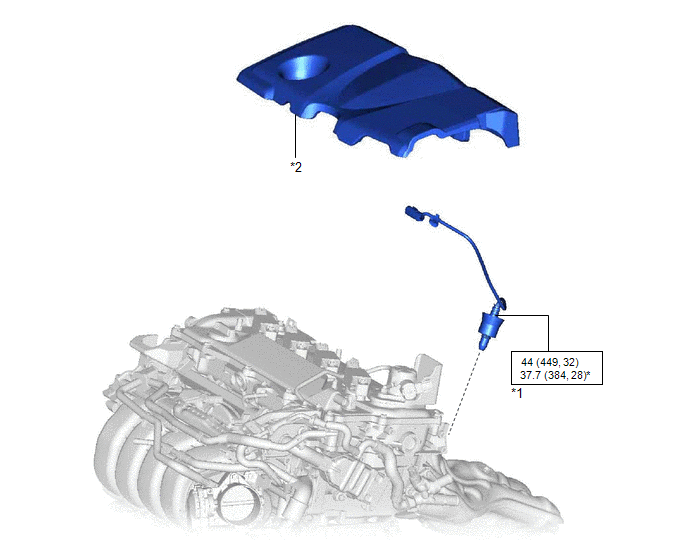

Fig 1: Air Fuel Ratio Sensor (For Sensor 1) Replacement Components With Torque Specifications
GTY753860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
