Removal [04/2018 - 08/2021]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021]

  2. DRAIN FUEL
  3. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [04/2018 - ]

  4. REMOVE NO. 2 FLOOR UNDER COVER

    Refer to PROCEDURE - Step 4 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - 08/2021]

  5. REMOVE NO. 1 FUEL TANK PROTECTOR

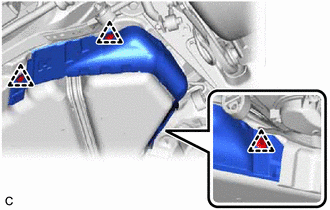

    1. Remove the 3 clips and No. 1 fuel tank protector from the fuel tank assembly.
      GTY773556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

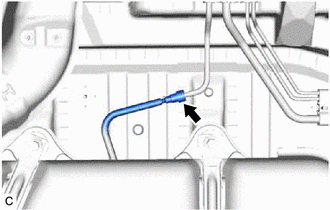

    1. Disconnect the fuel tank main tube sub-assembly from the fuel pipe.
      GTY763329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [04/2018 - ]

  7. DISCONNECT FUEL TANK TO FILLER PIPE HOSE

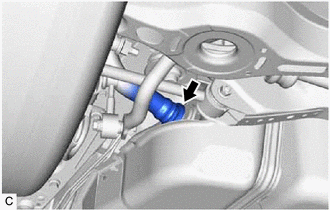

    1. Disconnect the fuel tank to filler pipe hose from the fuel tank assembly.
      GTY763328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [04/2018 - ]

  8. REMOVE FUEL TANK ASSEMBLY
    WARNING:

    The fuel tank assembly is very heavy. Be sure to follow the procedure described in the repair service information, or the fuel tank assembly may fall off the engine lifter.

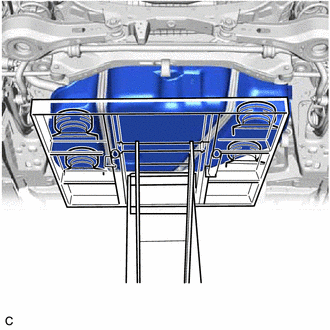

    1. Support the fuel tank assembly using an engine lifter.
      GTY773557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.

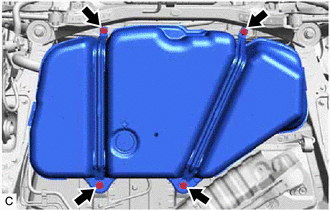

    2. Remove the 4 bolts, No. 1 fuel tank band sub-assembly LH and No. 1 fuel tank band sub-assembly RH.
      GTY763325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Lower the engine lifter to remove the fuel tank assembly.
      NOTE:
      • Be careful not to drop the fuel tank assembly.
      • When removing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.
  9. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY

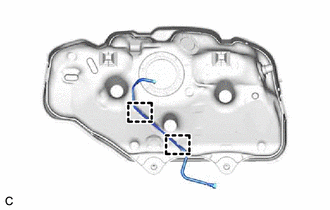

    1. Disengage the 2 clamps to remove the fuel tank main tube sub-assembly from the fuel tank assembly.
      GTY763324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 FUEL TANK CUSHION

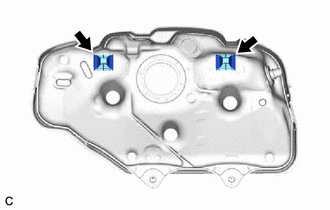

    1. Remove the 2 No. 1 fuel tank cushions from the fuel tank assembly.
      GTY763323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY

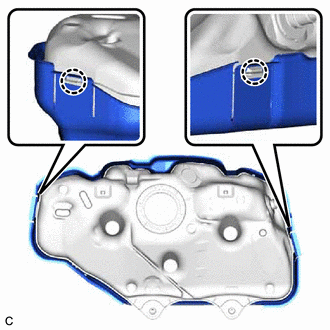

    1. Disengage the 2 claws and remove the No. 1 fuel tank protector sub-assembly from the fuel tank assembly.
      GTY763322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
