Components [04/2018 - ]
WARNING: This page is about a different variant/trim than selected.

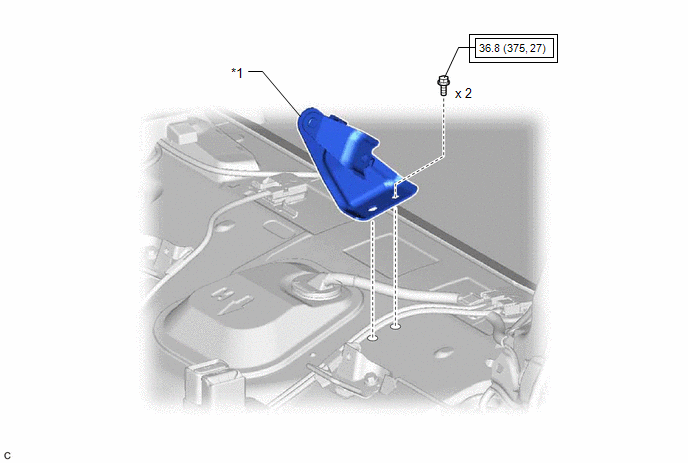

| *1 | LUGGAGE TRIM SERVICE HOLE COVER | - | - |
| Callout | Description | Callout | Description |
| *1 | CENTER REAR SEATBACK HINGE SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| *A | for Type A | *B | for Type B |

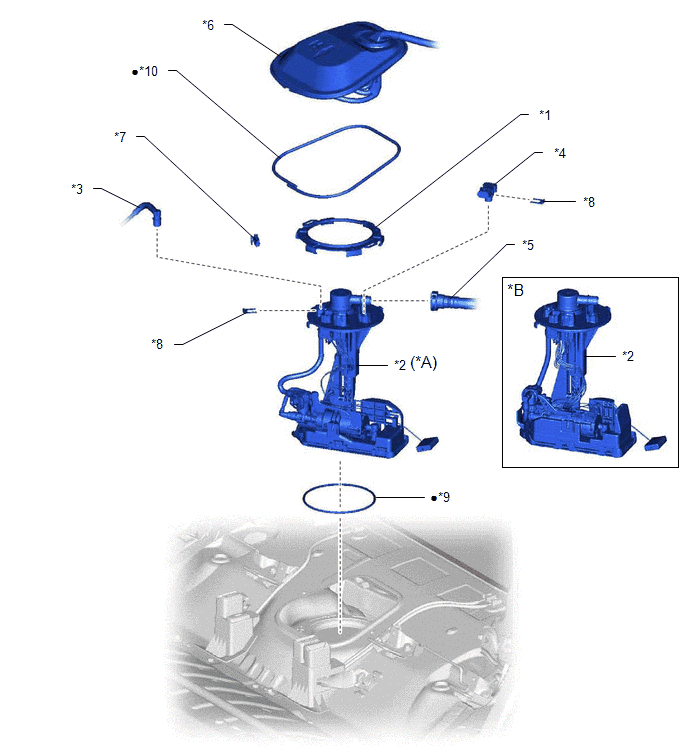

| *1 | FUEL PUMP GAUGE RETAINER | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR ASSEMBLY) |
| *5 | FUEL TANK VENT HOSE SUB-ASSEMBLY | *6 | REAR FLOOR SERVICE HOLE COVER |
| *7 | NO. 1 FUEL TUBE CLAMP | *8 | TUBE JOINT CLIP |
| *9 | FUEL SUCTION TUBE SET GASKET | *10 | BUTYL TAPE |
| • | Non-reusable part | - | - |
| *A | for Type A | - | - |
| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SUB-TANK SUB-ASSEMBLY | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL SUCTION SUPPORT | *6 | FUEL PUMP HARNESS |
| *7 | FUEL PUMP SPACER | *8 | O-RING |
| • | Non-reusable part | - | - |
| *A | for Type B | - | - |
| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SUB-TANK SUB-ASSEMBLY | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL SUCTION SUPPORT | *6 | FUEL PUMP HARNESS |
| *7 | FUEL PUMP SPACER | *8 | O-RING |
| • | Non-reusable part | - | - |
