Components [04/2018 - ]
WARNING: This page is about a different variant/trim than selected.

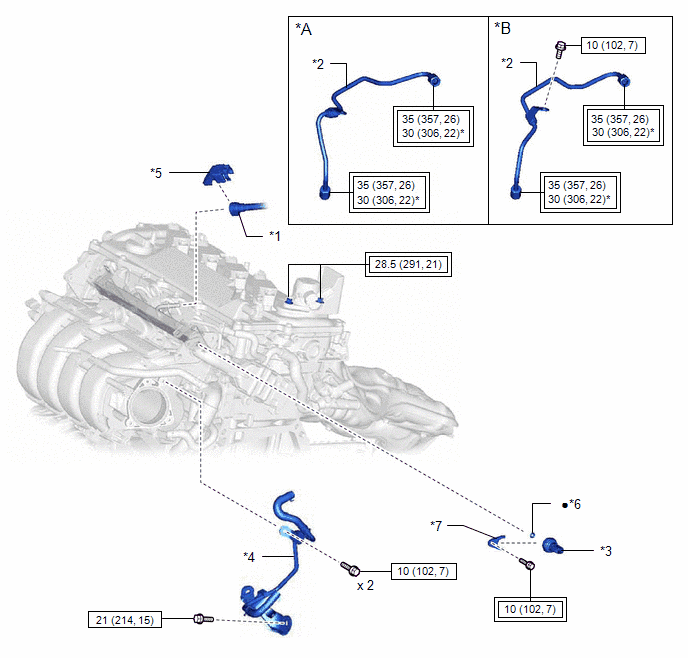

| *1 | LUGGAGE TRIM SERVICE HOLE COVER | - | - |
| Callout | Description | Callout | Description |
| *A | for EGR Valve Bracket Connection Type | *B | for Cylinder Head Cover Sub-assembly Connection Type |
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 | NO. 2 FUEL PRESSURE SENSOR | *4 | NO. 2 WATER BY-PASS PIPE |
| *5 | FUEL PIPE CLAMP | *6 | O-RING |
| *7 | NO. 2 FUEL PRESSURE SENSOR HOLDER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
