Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

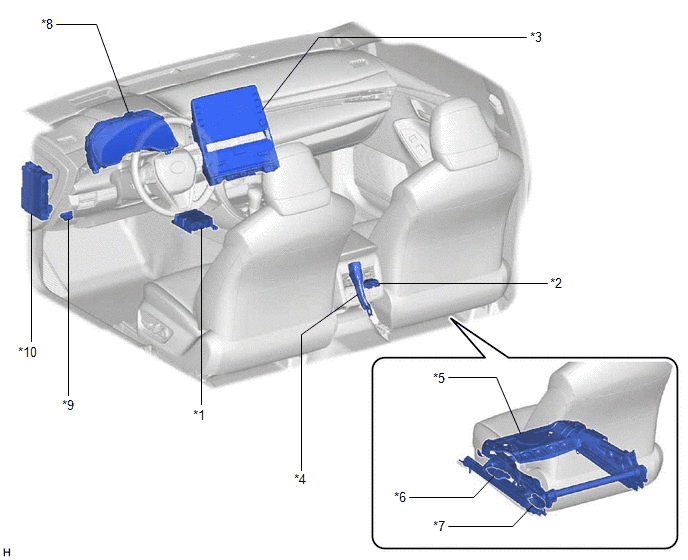

| *1 | - ACCELERATION SENSOR AIRBAG ECU ASSEMBLY |
*2 | OCCUPANT DETECTION ECU |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
*4 | FRONT SEAT INNER BELT ASSEMBLY RH - FRONT PASSENGER SIDE BUCKLE SWITCH |
| *5 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH | *6 | FRONT OCCUPANT CLASSIFICATION SENSOR LH |
| *7 | REAR OCCUPANT CLASSIFICATION SENSOR LH | *8 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
| *9 | DLC3 | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ECU-IG1 NO. 4 FUSE |
