Parts Location [04/2018 - 08/2019]: Illustration
WARNING: This page is about a different variant/trim than selected.

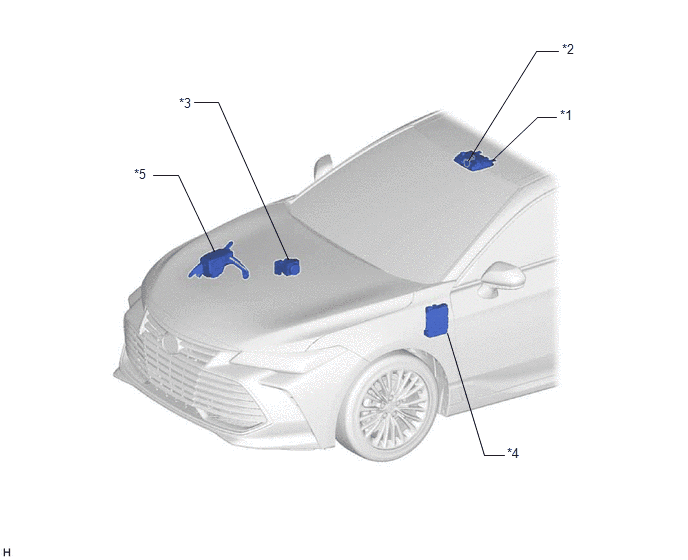

| *1 | ROOF CONSOLE BOX SUB-ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG2 NO. 3 FUSE - DCM FUSE - PANEL FUSE - METER-IG2 FUSE - RADIO FUSE |
| *5 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - AMP NO. 1 FUSE (for 14 Speakers) - AMP NO. 2 FUSE (for 14 Speakers) |
- | - |
| *1 | NAVIGATION ANTENNA ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | NO. 5 ANTENNA CORD SUB-ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | DLC3 | *8 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| *9 | DCM (TELEMATICS TRANSCEIVER) | *10 | STEREO JACK ADAPTER ASSEMBLY |
| *11 | - GPS | - | - |
for 8 Speakers
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | REAR SPEAKER ASSEMBLY LH | *6 | REAR SPEAKER ASSEMBLY RH |
| *7 | REAR NO. 2 SPEAKER ASSEMBLY LH | *8 | REAR NO. 2 SPEAKER ASSEMBLY RH |

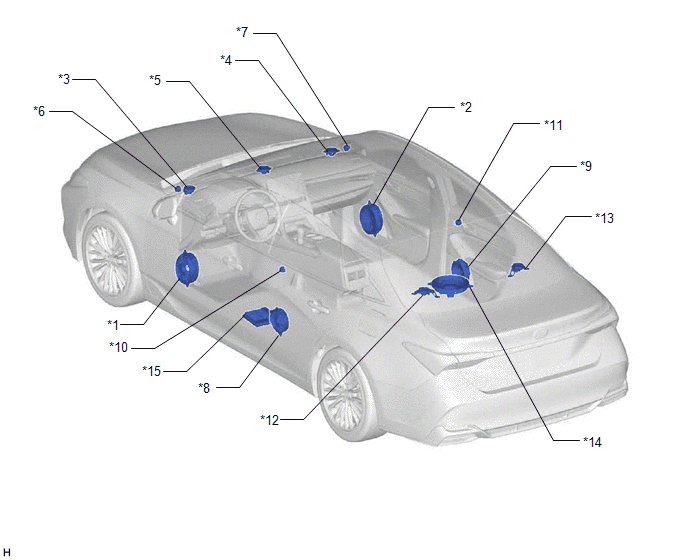

for 14 Speakers
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | FRONT NO. 4 SPEAKER ASSEMBLY | *6 | FRONT NO. 3 SPEAKER ASSEMBLY LH |
| *7 | FRONT NO. 3 SPEAKER ASSEMBLY RH | *8 | REAR SPEAKER ASSEMBLY LH |
| *9 | REAR SPEAKER ASSEMBLY RH | *10 | REAR NO. 2 SPEAKER ASSEMBLY LH |
| *11 | REAR NO. 2 SPEAKER ASSEMBLY RH | *12 | SPEAKER ASSEMBLY WITH BRACKET LH |
| *13 | SPEAKER ASSEMBLY WITH BRACKET RH | *14 | REAR NO. 3 SPEAKER ASSEMBLY |
| *15 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |
| *1 | RADIO SETTING CONDENSOR | *2 | WINDOW GLASS ANTENNA WIRE |
| *3 | NO. 2 AMPLIFIER ANTENNA ASSEMBLY | *4 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *5 | TELEPHONE ANTENNA ASSEMBLY (w/ SXM Function) - SiriusXM |
*6 | NO. 2 ANTENNA CORD SUB-ASSEMBLY (w/ SXM Function) |
| *7 | ANTENNA CORD SUB-ASSEMBLY | *8 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
| *9 | - FM Main - AM |
*10 | - FM Sub |
