Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

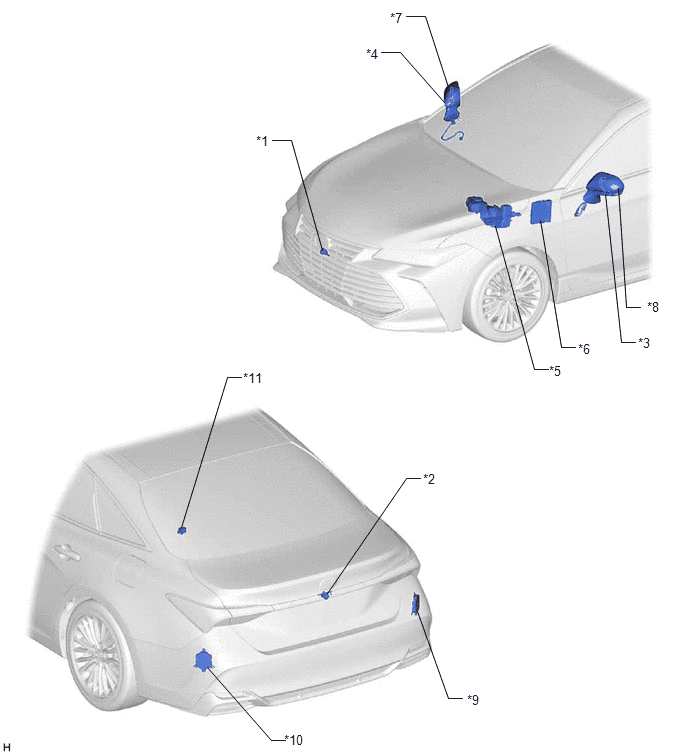

| *1 | FRONT TELEVISION CAMERA ASSEMBLY | *2 | TELEVISION CAMERA ASSEMBLY |
| *3 | SIDE TELEVISION CAMERA ASSEMBLY LH | *4 | SIDE TELEVISION CAMERA ASSEMBLY RH |
| *5 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
*6 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *9 | BLIND SPOT MONITOR SENSOR RH | *10 | BLIND SPOT MONITOR SENSOR LH |
| *11 | RCTA BUZZER (BLIND SPOT MONITOR BUZZER) | - | - |

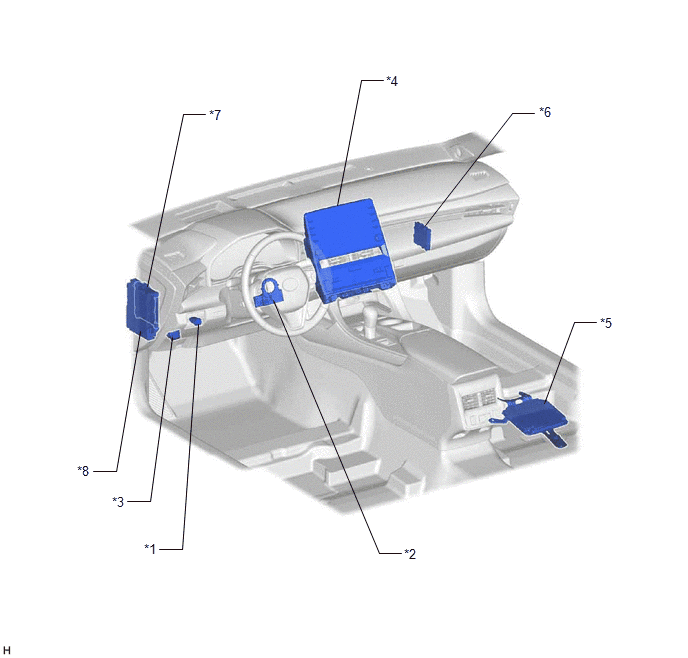

| *1 | PANORAMIC VIEW MONITOR SWITCH | *2 | STEERING SENSOR |
| *3 | DLC3 | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | PARKING ASSIST ECU | *6 | CLEARANCE WARNING ECU ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-DCC NO. 1 FUSE - ECU-ACC FUSE - ECU-B NO. 2 FUSE - ECU-IG1 NO. 2 FUSE - ACC Relay - IG1-NO. 1 Relay - BKUP LP Relay |
