Section 110 (Fuel Lid Opener System - Diagnostics & Symptom Tests (Hybrid))
>>
FUEL LID OPENER SYSTEM (for HV Model)
>>
Symptom Tests
>>
Fuel Lid Opener does not Operate [04/2018 - ]
>>

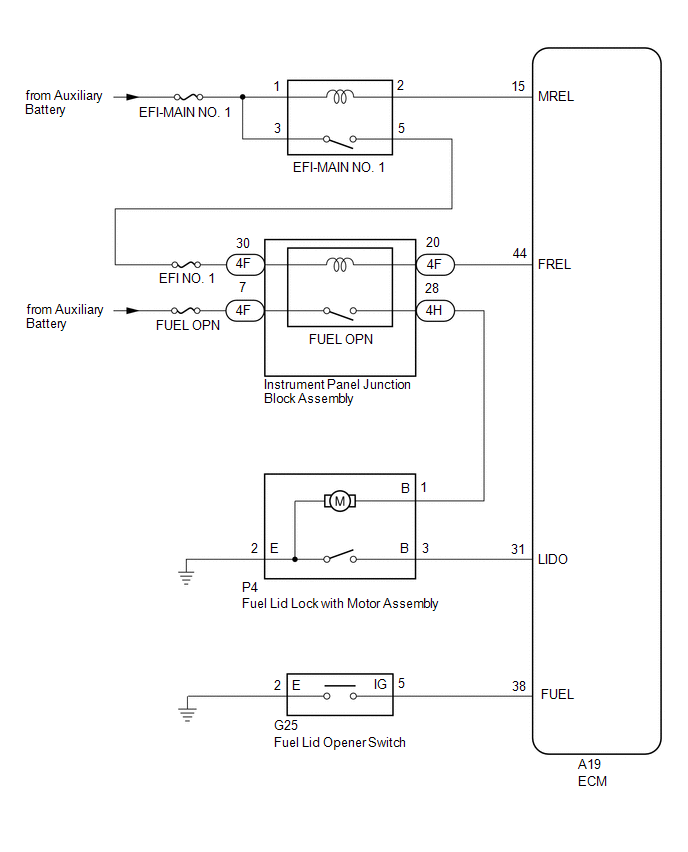

Wiring Diagram
Fuel Lid Opener does not Operate [04/2018 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
