Section 105 (Engine Control System - Diagnostic Codes [A25A-FXS] (P0520-P107A))
>>
SFI System
>>
DTC P059F-73: Active Grille Air Shutter "A" Actuator Stuck Closed; DTC P05A0-72: Active Grille Air Shutter "A" Actuator Stuck Open [04/2018 - 08/2021]
>>
Wiring Diagram

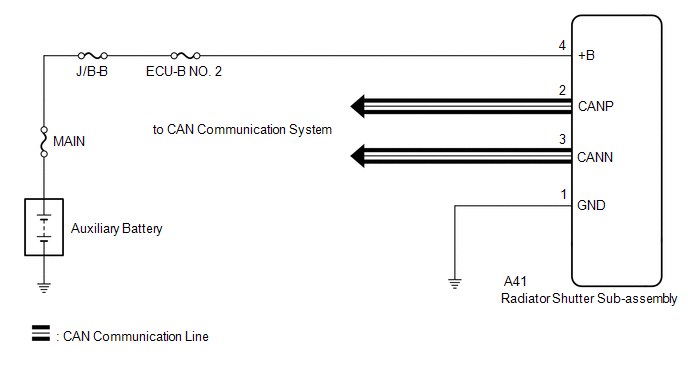

DTC P059F-73: Active Grille Air Shutter "A" Actuator Stuck Closed; DTC P05A0-72: Active Grille Air Shutter "A" Actuator Stuck Open [04/2018 - 08/2021]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
