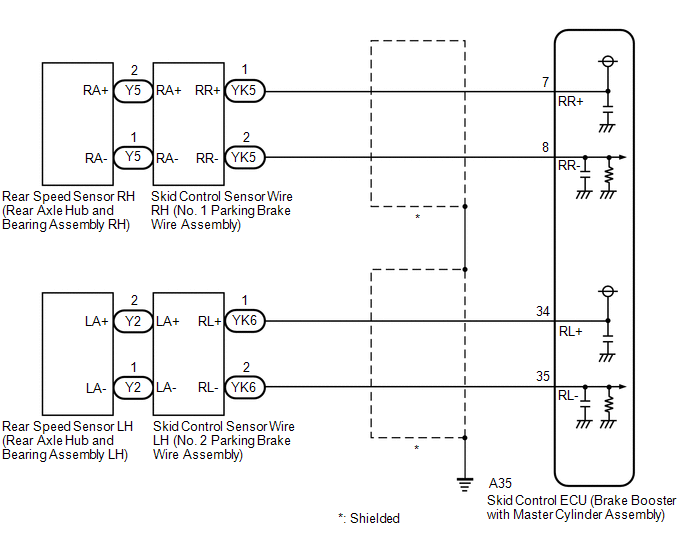

DTC C1415: Rear Speed Sensor RH Circuit Output; DTC C1416: Rear Speed Sensor LH Circuit Output [04/2018 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY871165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
