Section 104 (Electronically Controlled Brake System - Diagnostic Codes (C1415-U0073) & Symptom Tests (Hybrid))
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
Curcuit Tests
>>
VSC OFF Switch Circuit [04/2018 - ]
>>
Wiring Diagram

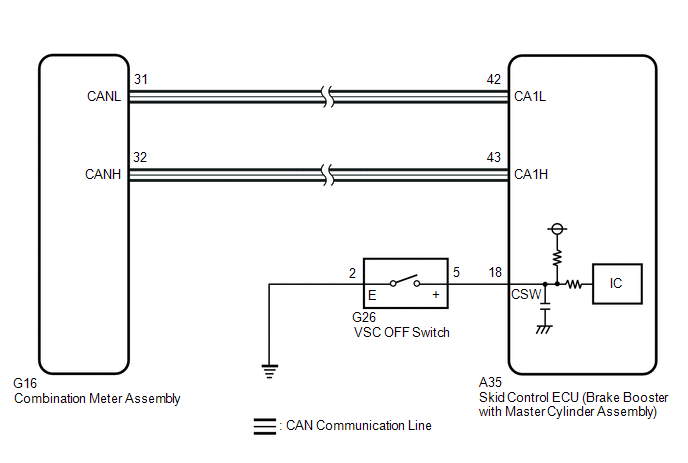

VSC OFF Switch Circuit [04/2018 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
