Removal [04/2018 - 08/2019]: Procedure
WARNING: This page is about a different variant/trim than selected.
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Refer to PRECAUTION [04/2018 -]
- REMOVE LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 2
- REMOVE BATTERY STATE SENSOR ASSEMBLY

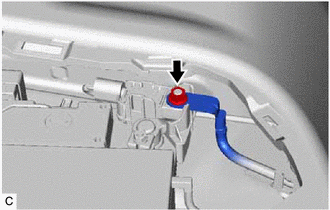

- Remove the nut and disconnect the No. 2 frame wire from the battery state sensor assembly.NOTE:
When disconnecting the engine wire, some systems need to be initialized after the engine wire is reconnected.
Refer to INITIALIZATION [04/2018 - 08/2020]

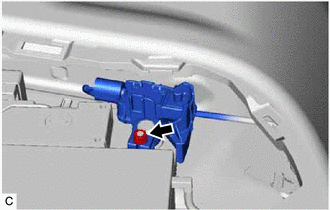

- Loosen the nut and remove the battery state sensor assembly from the auxiliary battery.
- Disconnect the battery state sensor assembly connector.
- Disengage the 2 claws to remove the battery state sensor assembly from the battery current sensor holder.
- Remove the nut and disconnect the No. 2 frame wire from the battery state sensor assembly.
