Parts Location [04/2018 - 08/2020]: Illustration
WARNING: This page is about a different car, the 2020 Toyota Avalon and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

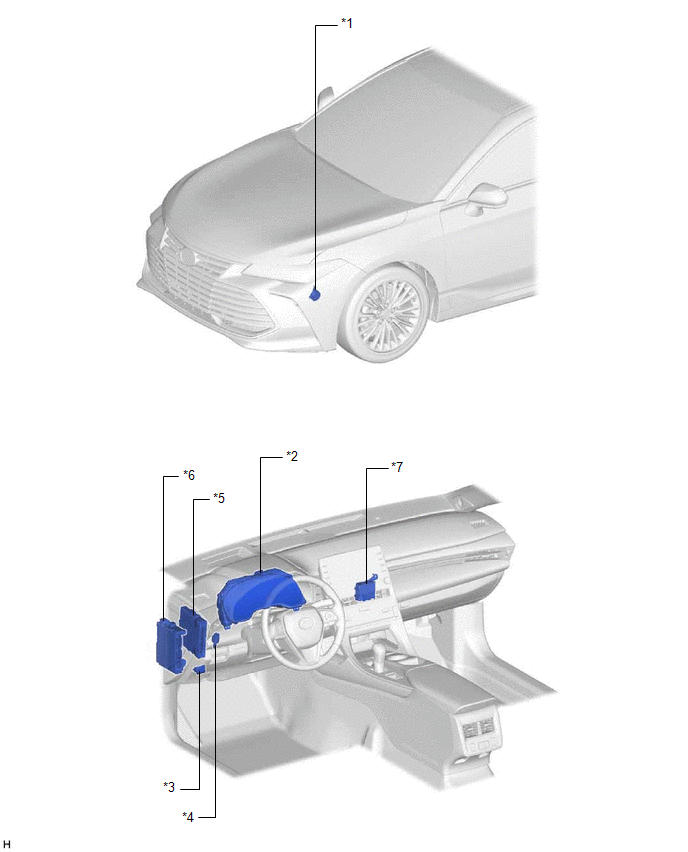

| *1 |
VEHICLE APPROACHING SPEAKER ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
DLC3 |
*4 |
STOP LIGHT SWITCH ASSEMBLY |
| *5 |
HYBRID VEHICLE CONTROL ECU |
*6 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 3 FUSE |
| *7 |
VEHICLE APPROACHING SPEAKER CONTROLLER |
- |
- |
