Removal [04/2018 - 08/2020]: Procedure

WARNING: This page is about a different car, the 2020 Toyota Avalon and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [04/2018 -]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 3

  4. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

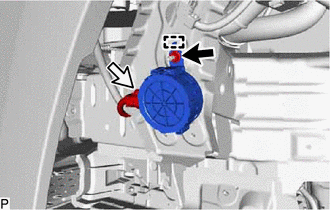

    1. Remove the nut.
      GTY919449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.
    3. Disconnect the connector to remove the vehicle approaching speaker assembly.
