Installation [04/2018 - 08/2020]: Procedure

WARNING: This page is about a different car, the 2020 Toyota Avalon and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

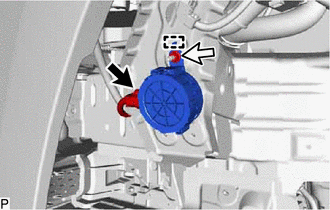

  1. INSTALL VEHICLE APPROACHING SPEAKER ASSEMBLY
    1. Connect the connector.
      GTY919448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide.
    3. Install the vehicle approaching speaker assembly with the nut.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 3

  3. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 4

  4. INSTALL FRONT WHEEL LH

    Refer to INSTALLATION [04/2018 -]
