Removal [04/2018 - 08/2020]: Procedure

WARNING: This page is about a different car, the 2020 Toyota Avalon and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2020]

  2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

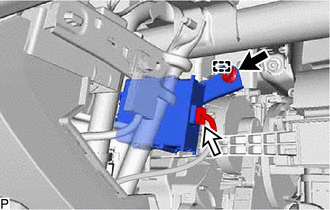

  3. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER
    1. Remove the nut.
      GTY932842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide.
    3. Disconnect the connector to remove the vehicle approaching speaker controller.
