Installation [04/2018 - 08/2020]: Procedure

WARNING: This page is about a different car, the 2020 Toyota Avalon and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

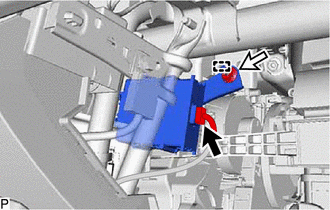

  1. INSTALL VEHICLE APPROACHING SPEAKER CONTROLLER
    1. Connect the connector.
      GTY868448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide.
    3. Install the vehicle approaching speaker controller with the nut.

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

  2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31

  3. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [04/2018 - 08/2020]
