Components [04/2018 - 08/2020]

WARNING: This page is about a different car, the 2020 Toyota Avalon and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

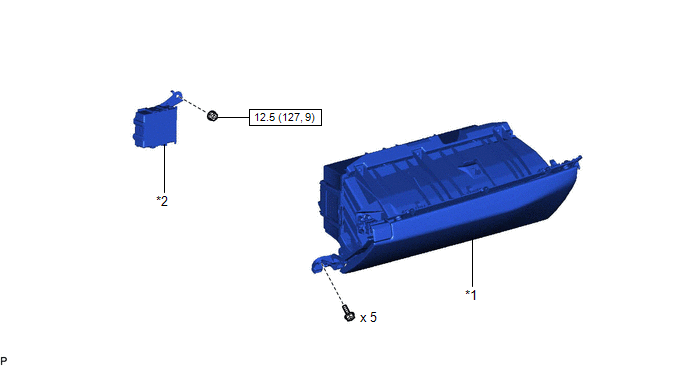

Fig 1: Vehicle Approaching Speaker ECU Replacement Components With Torque Specifications
GTY926729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LOWER INSTRUMENT PANEL SUB-ASSEMBLY *2 VEHICLE APPROACHING SPEAKER CONTROLLER
N*m (kgf*cm, ft.*lbf): Specified torque - -
