Parts Location [04/2018 - 08/2021]: Illustration
WARNING: This page is about a different car, the 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

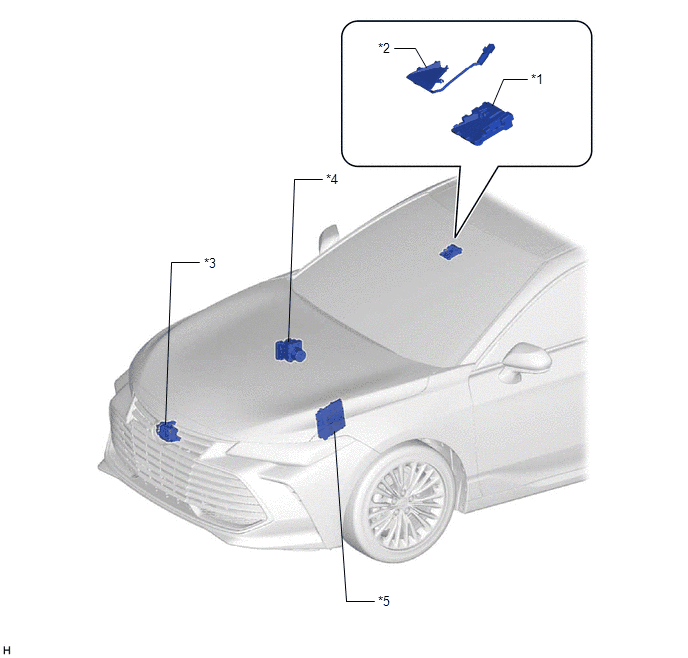

| *1 | FORWARD RECOGNITION CAMERA | *2 | FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | ECM | - | - |
