Section 35 (Engine Mechanical (Service Information) [A25A-FKS])
>>
Front Crankshaft Oil Seal
>>
Components [08/2020 - ]
Components [08/2020 - ]
WARNING:
This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

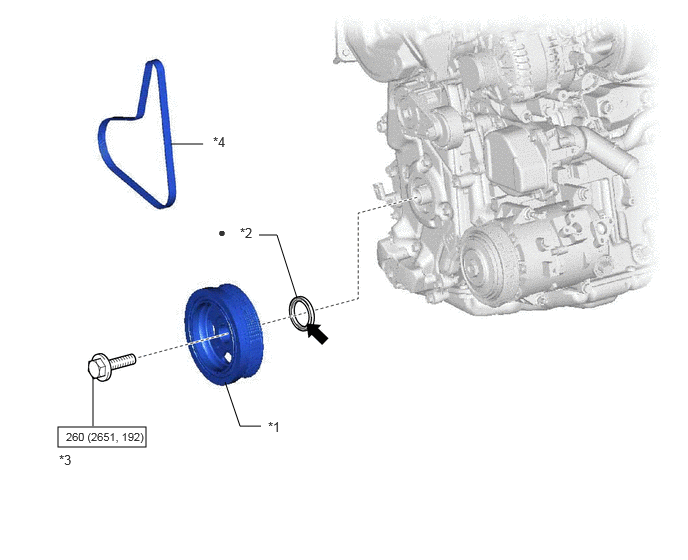

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
CRANKSHAFT PULLEY ASSEMBLY
*2
TIMING CHAIN COVER OIL SEAL
*3
CRANKSHAFT PULLEY BOLT
*4
V-RIBBED BELT
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
MP grease
-
-
