Parts Location [04/2018 - 08/2021]: Illustration
WARNING: This page is about a different car, the 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

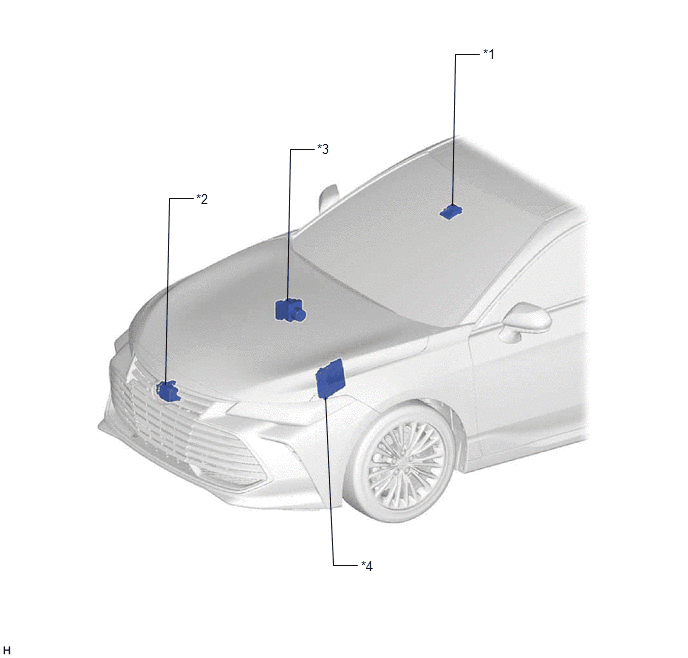

| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | ECM |

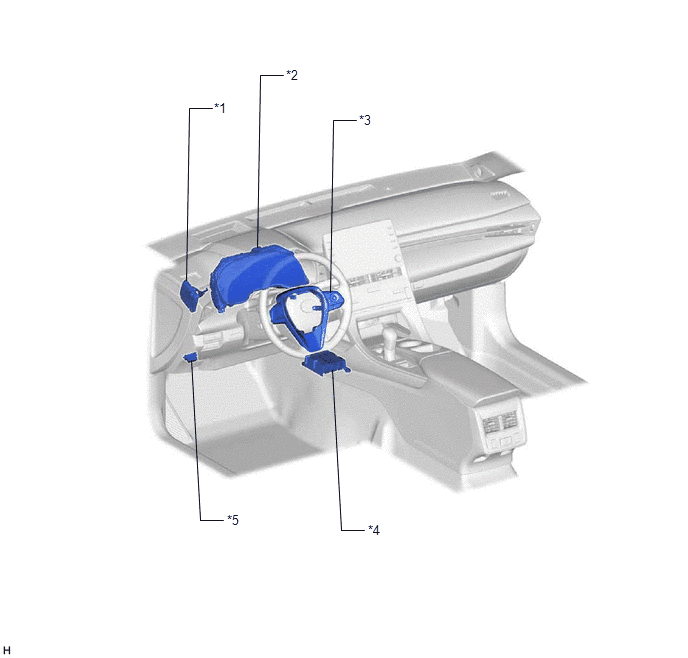

| *1 | DRIVING SUPPORT ECU ASSEMBLY | *2 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - PCS WARNING LIGHT |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | AIRBAG ECU ASSEMBLY - YAW RATE SENSOR |
| *5 | DLC3 | - | - |
