Parts Location [04/2018 - 08/2020]: Illustration

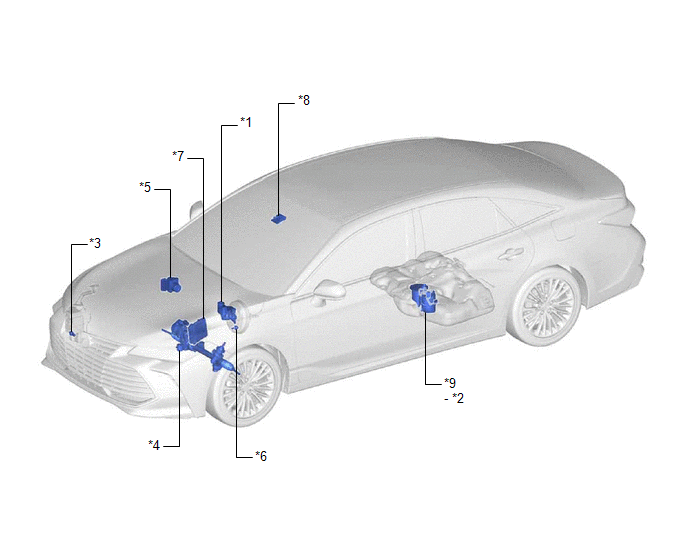

| *1 | BRAKE FLUID LEVEL WARNING SWITCH (BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY) | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) |
| *5 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *6 | VACUUM WARNING SWITCH |
| *7 | ECM | *8 | FORWARD RECOGNITION CAMERA |
| *9 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | - | - |
| *A | w/ Cornering Light | *B | w/ Adaptive Variable Suspension System |

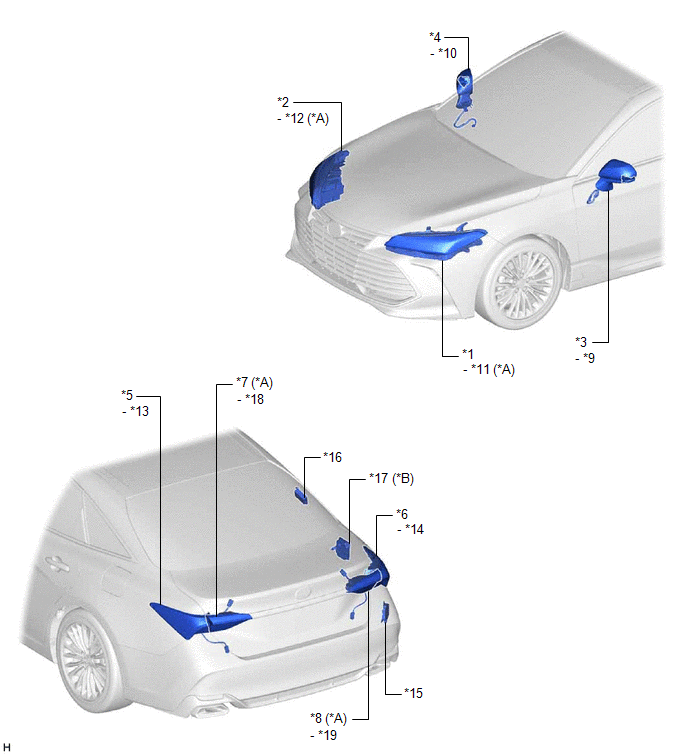

| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR SUB-ASSEMBLY LH | *4 | OUTER REAR VIEW MIRROR SUB-ASSEMBLY RH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY LH | *6 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *7 | REAR LIGHT ASSEMBLY LH | *8 | REAR LIGHT ASSEMBLY RH |
| *9 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *10 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *11 | HEADLIGHT ECU SUB-ASSEMBLY LH | *12 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *13 | REAR COMBINATION LIGHT SOCKET AND WIRE LH | *14 | REAR COMBINATION LIGHT SOCKET AND WIRE RH |
| *15 | BLIND SPOT MONITOR SENSOR RH (B) | *16 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER |
| *17 | ABSORBER CONTROL ECU | *18 | REAR LIGHT CORD LH |
| *19 | REAR LIGHT CORD RH | - | - |
| *A | w/ Navigation System | *B | for 14 Speakers |
| *C | w/ Manual (SOS) Switch | *D | w/ Intelligent Clearance Sonar System |
| *E | w/ Headup Display System | - | - |

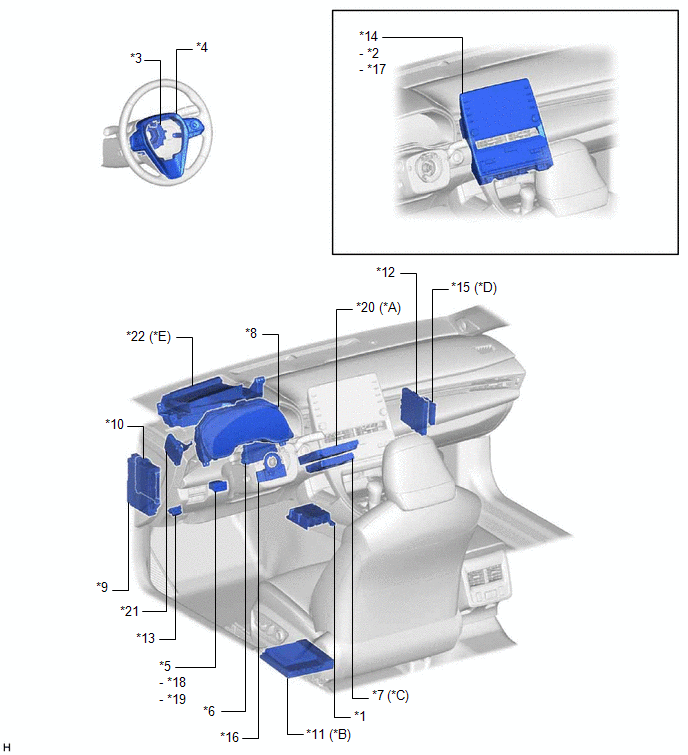

| *1 | AIRBAG ECU ASSEMBLY | *2 | HAZARD WARNING SWITCH ASSEMBLY |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | TRIP SWITCH | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | COMBINATION METER ASSEMBLY |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE - HAZ FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *12 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *13 | DLC3 | *14 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *15 | CLEARANCE WARNING ECU ASSEMBLY | *16 | STEERING SENSOR |
| *17 | REAR SEAT BELT WARNING LIGHT | *18 | ODO/TRIP SWITCH |
| *19 | LIGHT CONTROL RHEOSTAT SWITCH | *20 | NAVIGATION ECU |
| *21 | DRIVING SUPPORT ECU ASSEMBLY | *22 | METER MIRROR SUB-ASSEMBLY |
