Removal [04/2018 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [04/2018 - ]

  2. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2020] , or refer to REMOVAL [08/2020 - ]

  3. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

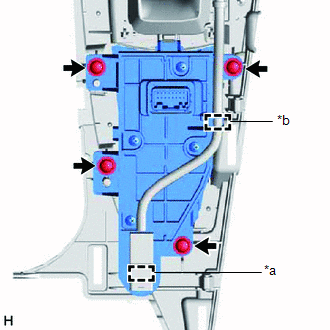

    1. GTY938501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide

      Disengage the clamp and guide.

    2. Remove the 4 screws and electric parking brake switch assembly.
