Installation [04/2018 - ]: Procedure

  1. INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

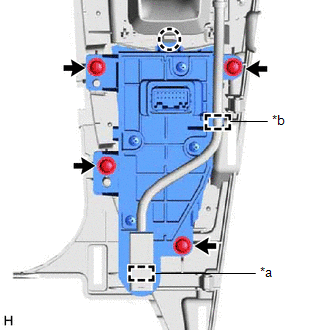

    1. Engage the claw to install the electric parking brake switch assembly with the 4 screws.
      GTY933743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Engage the guide and clamp.
  2. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - ]
