Installation [08/2020 -]: Procedure

1. Install a new check valve grommet to the brake booster assembly.

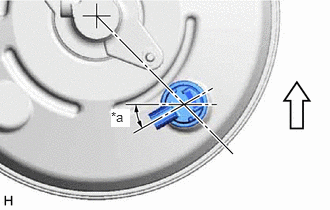

1. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	30° +/- 20°
   	Up

2. Connect the connector to the vacuum warning switch assembly.

for 2GR-FKS: Refer to INSTALLATION [04/2018 -]

for A25A-FKS: Refer to INSTALLATION [08/2020 -]
