Installation [04/2018 -]: Procedure

  1. INSTALL BRAKE PEDAL PAD
    1. Install the brake pedal pad to the brake pedal support assembly.

      HINT:

      Installation is easier after applying a small amount of soapy water.

  2. INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER
    1. Engage the 2 claws to install the stop light switch mounting adjuster.
  3. INSTALL BRAKE PEDAL RETURN SPRING

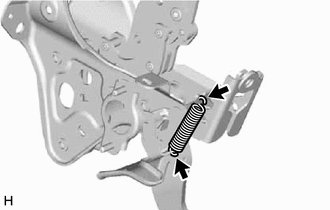

    1. Install the brake pedal return spring to the brake pedal support assembly.
      GTY744088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Attach the bottom part of the brake pedal return spring first, making sure that the open part of the hook is facing the front of the vehicle. Attach the top part of the brake pedal return spring second, making sure that the open part of the hook is facing the rear of the vehicle.

  4. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY
    1. Install the brake pedal support assembly while avoiding the stud bolts of the brake booster support base.
      NOTE:

      Be careful not to deform the bracket of the instrument panel reinforcement assembly.

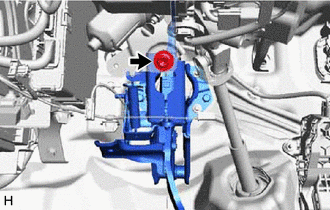

    2. Install the brake pedal support assembly to the instrument panel reinforcement assembly with the bolt.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

      GTY744084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

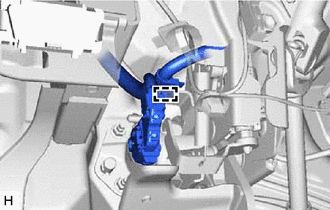

    3. Engage the clamp to install the wire harness to the brake pedal support assembly.
      GTY744087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL BRAKE MASTER CYLINDER GASKET

    See step  1

  6. INSTALL BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

    See step  2

  7. INSTALL PUSH ROD PIN

    See step  3

  8. INSTALL STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  10. CONNECT BRAKE LINE

    See step  4

  11. CONNECT NO. 1 BRAKE ACTUATOR HOSE

    See step  5

  12. CONNECT ENGINE ROOM MAIN WIRE

    See step  6

  13. BLEED NO. 1 BRAKE ACTUATOR TUBE

    See step  7

  14. CONNECT BRAKE BOOSTER PUMP CONNECTOR

    See step  8

    HINT:

    Perform this operation only when the accumulator pressure zero down operation could not be performed using the Techstream.

  15. FILL RESERVOIR WITH BRAKE FLUID
  16. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  17. BLEED BRAKE SYSTEM

    See step  3

  18. INSPECT AND ADJUST BRAKE PEDAL

    Refer to ADJUSTMENT [04/2018 - 08/2021] , or refer to ADJUSTMENT [08/2021 -]

  19. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 47

  20. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    See step  15

  21. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3
