Components [08/2021 -]
Fig 1: Brake Pedal (For Gasoline Model) Replacement Components With Torque Specifications (1 Of 3) [08/2021 -]
| Callout | Description | Callout | Description |

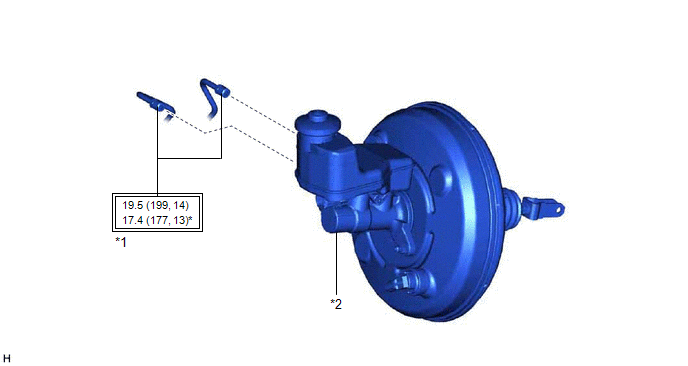

| *1 | BRAKE LINE | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench |

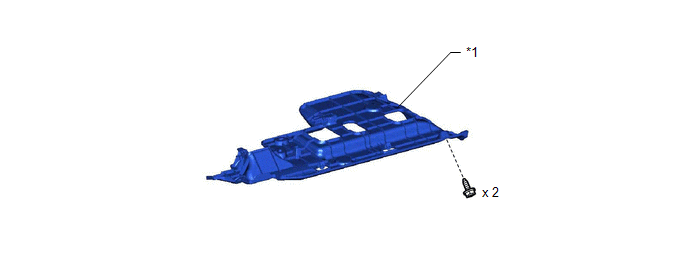

| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |

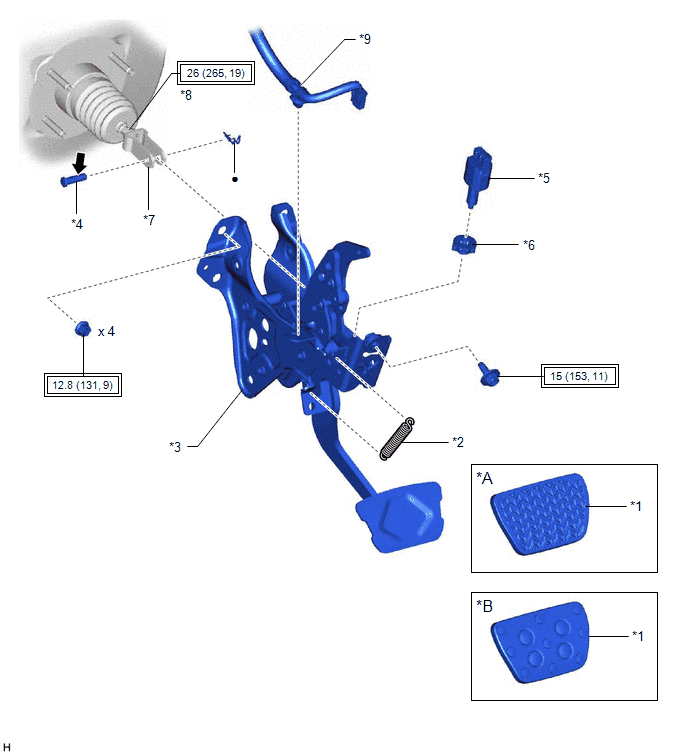

Fig 3: Brake Pedal (For Gasoline Model) Replacement Components With Torque Specifications (3 Of 3) [08/2021 -]
| Callout | Description | Callout | Description |
| *A | w/ Rubber Pad | *B | w/ Aluminum Pad |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL SUPPORT ASSEMBLY | *4 | PUSH ROD PIN |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH MOUNTING ADJUSTER |
| *7 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS | *8 | LOCK NUT |
| *9 | WIRE HARNESS | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
