Reassembly [04/2018 -]: Procedure

  1. INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER
  2. INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

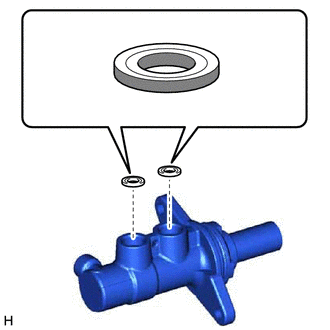

  3. INSTALL MASTER CYLINDER RESERVOIR GROMMET
    1. Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new master cylinder reservoir grommets.
      GTY760302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lithium Soap Base Glycol Grease
    2. Install the 2 master cylinder reservoir grommets to the brake master cylinder body.
  4. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
    1. Secure the brake master cylinder body in a vise.
      NOTE:

      Place aluminum plates on the vise to prevent damage to the brake master cylinder body.

    2. Install the brake master cylinder reservoir assembly to the brake master cylinder body.
      NOTE:

      Do not drop the brake master cylinder reservoir assembly.

  5. INSTALL BRAKE MASTER CYLINDER STRAIGHT PIN
    1. Using a 5 mm pin punch and a hammer, tap in the brake master cylinder straight pin to secure the brake master cylinder reservoir assembly.
      GTY943159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the brake master cylinder sub-assembly from the vise.
