  1. REMOVE BRAKE MASTER CYLINDER STRAIGHT PIN
    1. Secure the brake master cylinder sub-assembly in a vise.
      NOTE:

      Place aluminum plates on the vise to prevent damage to the brake master cylinder sub-assembly.

    2. Using a 5 mm pin punch and a hammer, tap out the brake master cylinder straight pin from the brake master cylinder sub-assembly.
      GTY943159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not drop the brake master cylinder reservoir assembly.

  2. REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
    1. Remove the brake master cylinder reservoir assembly from the brake master cylinder body.
  3. REMOVE MASTER CYLINDER RESERVOIR GROMMET
    1. Remove the 2 master cylinder reservoir grommets from the brake master cylinder body.

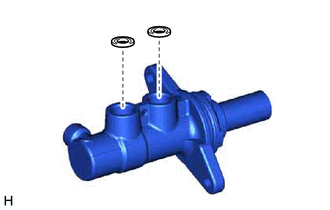

      GTY766387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the brake master cylinder body from the vise.
  4. REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
  5. REMOVE BRAKE MASTER CYLINDER RESERVOIR STRAINER
