Components [04/2018 -]

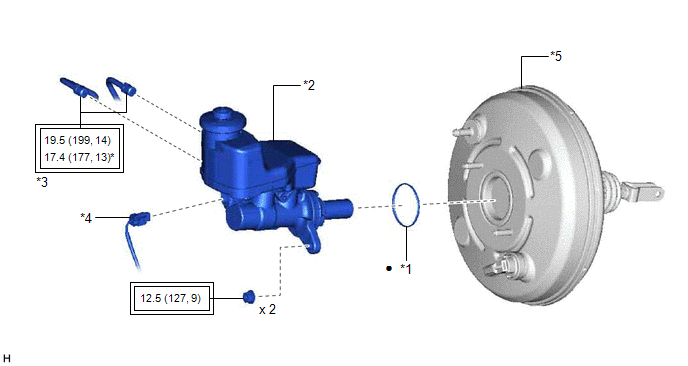

Fig 1: Brake Master Cylinder (For Gasoline Model) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | BRAKE MASTER CYLINDER O-RING | *2 | BRAKE MASTER CYLINDER SUB-ASSEMBLY |
| *3 | BRAKE LINE | *4 | CONNECTOR |
| *5 | BRAKE BOOSTER ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |

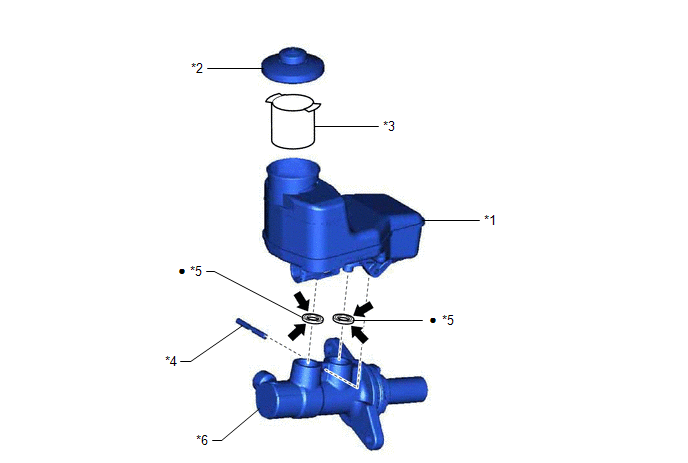

| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY |
| *3 | BRAKE MASTER CYLINDER RESERVOIR STRAINER | *4 | BRAKE MASTER CYLINDER STRAIGHT PIN |
| *5 | MASTER CYLINDER RESERVOIR GROMMET | *6 | BRAKE MASTER CYLINDER BODY |
| • | Non-reusable part | Lithium soap base glycol grease |
