Components [04/2018 -]

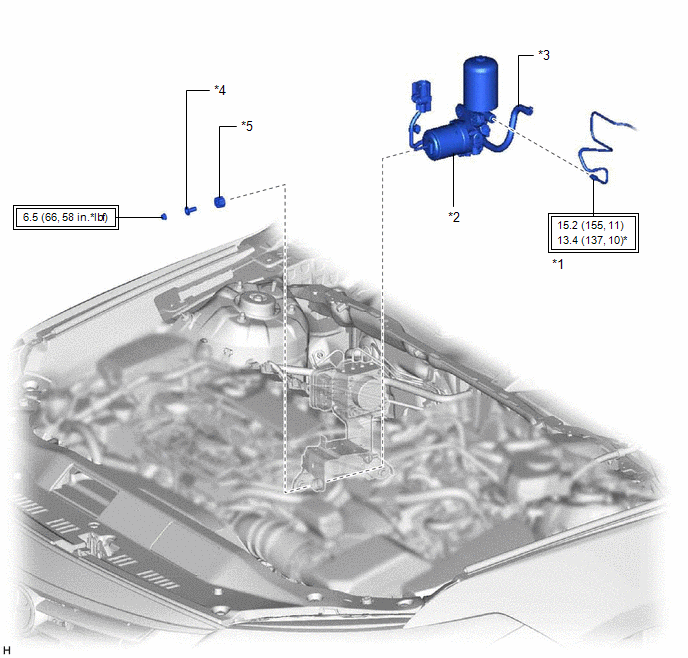

Fig 1: Brake Booster Pump (For HV Model) Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

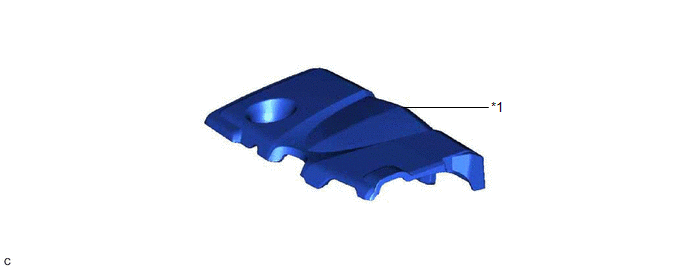

Fig 2: Brake Booster Pump (For HV Model) Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NO. 1 ENGINE COVER SUB-ASSEMBLY

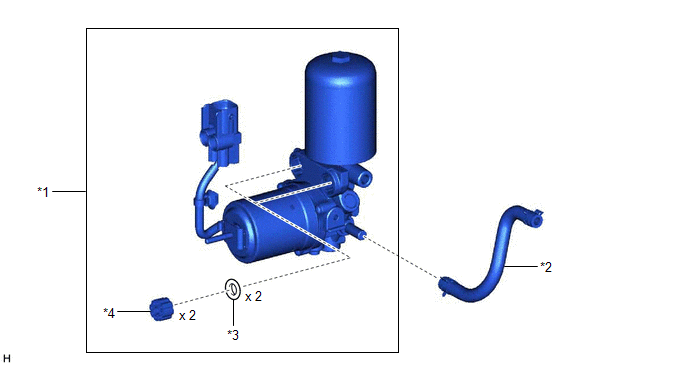

Fig 3: Brake Booster Pump (For HV Model) Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE	*2	BRAKE BOOSTER PUMP ASSEMBLY
*3	NO. 2 BRAKE ACTUATOR HOSE	*4	BRAKE ACTUATOR CASE COLLAR
*5	BRAKE BOOSTER PUMP BUSHING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	*	For use with a union nut wrench

Fig 4: Brake Booster Pump (For HV Model) Replacement Components (4 Of 4)

*1	BRAKE BOOSTER PUMP ASSEMBLY	*2	NO. 2 BRAKE ACTUATOR HOSE
*3	BRAKE BOOSTER PUMP COLLAR	*4	BRAKE BOOSTER PUMP BUSHING
