Components [04/2018 -]

Fig 1: Brake Booster (For HV Model) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

Fig 2: Brake Booster (For HV Model) Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

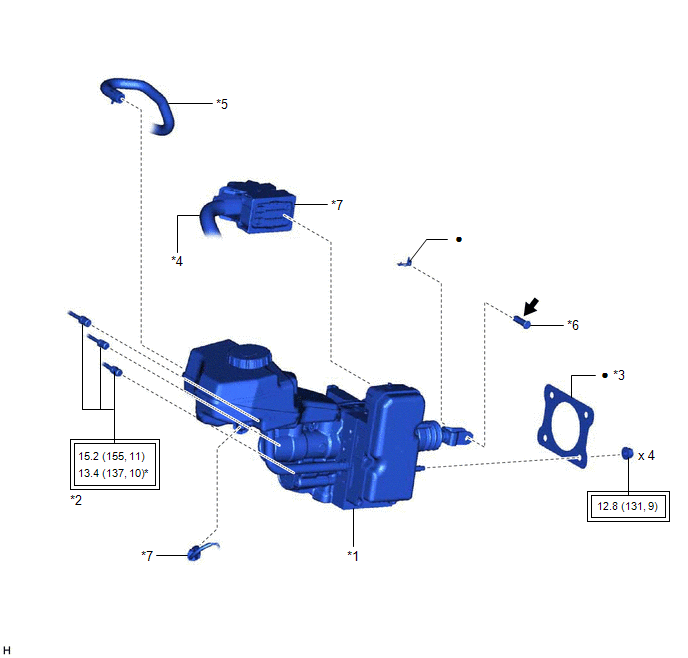

Fig 3: Brake Booster (For HV Model) Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY	*2	BRAKE LINE
*3	BRAKE MASTER CYLINDER GASKET	*4	ENGINE ROOM MAIN WIRE
*5	NO. 1 BRAKE ACTUATOR HOSE	*6	PUSH ROD PIN
*7	CONNECTOR	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	*	For use with a union nut wrench
•	Non-reusable part		Lithium soap base glycol grease
