Reassembly [04/2018 -]: Procedure

  1. INSTALL VACUUM WARNING SWITCH ASSEMBLY
    1. Install a new check valve grommet to the brake booster assembly.

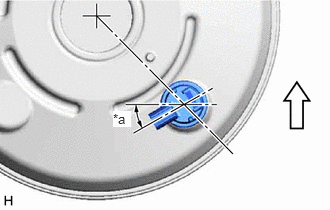

    2. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY750947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30° +/- 20°
      Up
  2. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Install a new check valve grommet to the brake booster assembly.
    2. Install the brake vacuum check valve assembly to the brake booster assembly.
