Removal [08/2021 - ]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE CENTER STOP LIGHT SET

    Refer to REMOVAL [04/2018 - ]

  3. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD (w/o Seat Heater System)

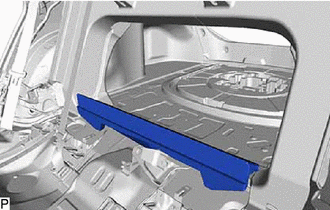

    1. Remove the luggage compartment inner trim pad.
      GTY863951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  5. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 11

  7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 14

  9. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE ROOF SIDE INNER GARNISH LH

    Refer to PROCEDURE - Step 15

  11. REMOVE ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR SEAT SHOULDER BELT COVER

    Refer to PROCEDURE - Step 20

  13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 21

  14. REMOVE ROOM PARTITION BOARD LH

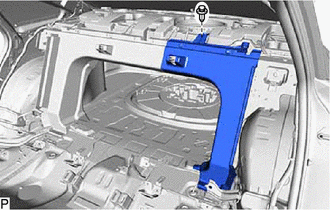

    1. Remove the clip.
      GTY931855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

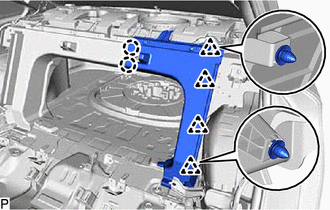

    2. Disengage the 2 claws.
      GTY863955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 clips to remove the room partition board LH.
  15. REMOVE ROOM PARTITION BOARD RH

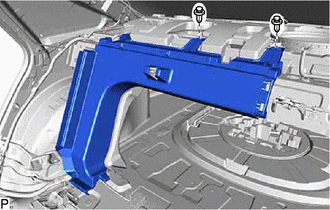

    1. Remove the 2 clips.
      GTY863953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

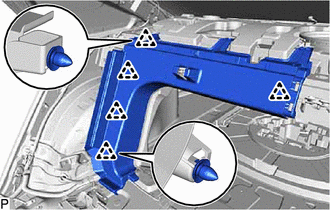

    2. Disengage the 5 clips to remove the room partition board RH.
      GTY863954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR SEATBACK LOCK ASSEMBLY LH

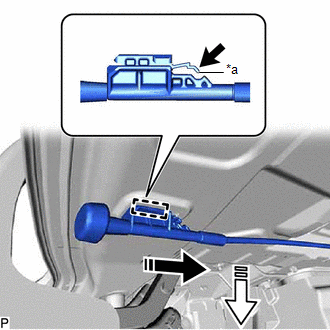

    1. Release the stopper and disengage the guide as shown in the illustration.
      GTY865202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      Release
      Remove in this Direction (1)
      Remove in this Direction (2)

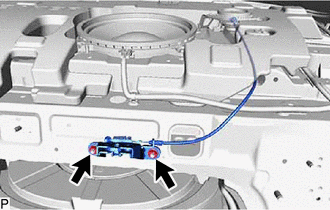

    2. Remove the 2 nuts and rear seatback lock assembly LH.
      GTY863962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEATBACK LOCK ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
