Parts Location [04/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

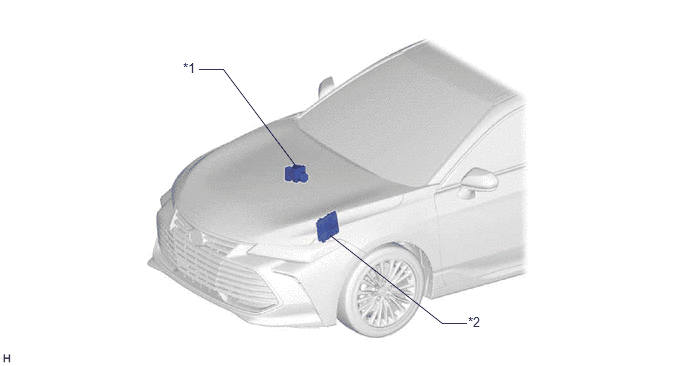

*1

BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU

*2

ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

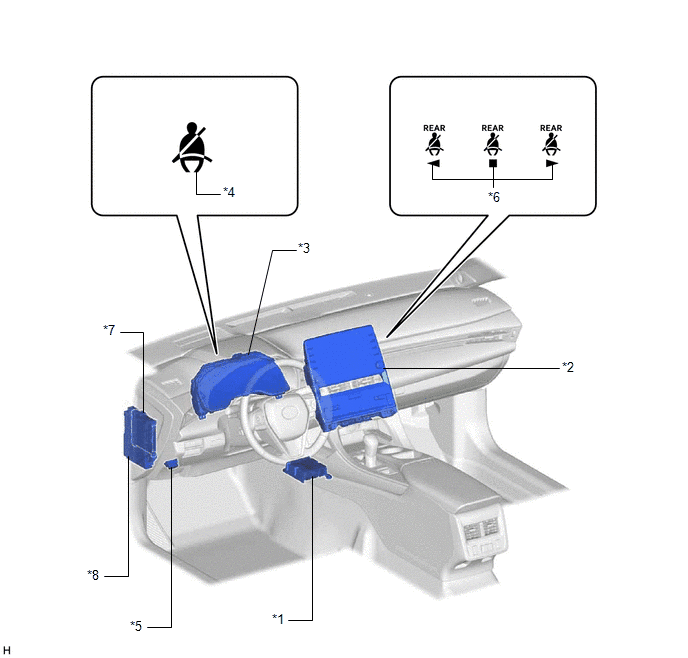

*1	AIRBAG ECU ASSEMBLY	*2	RADIO AND DISPLAY RECEIVER ASSEMBLY
*3	COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER	*4	SEAT BELT WARNING LIGHT
*5	DLC3	*6	REAR SEAT BELT WARNING LIGHT
*7	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*8	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

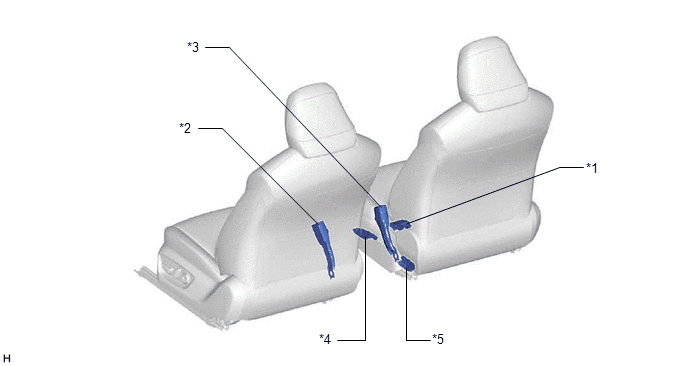

*1	OCCUPANT DETECTION ECU	*2	FRONT SEAT INNER BELT ASSEMBLY LH
*3	FRONT SEAT INNER BELT ASSEMBLY RH	*4	FRONT OCCUPANT CLASSIFICATION SENSOR LH
*5	REAR OCCUPANT CLASSIFICATION SENSOR LH	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

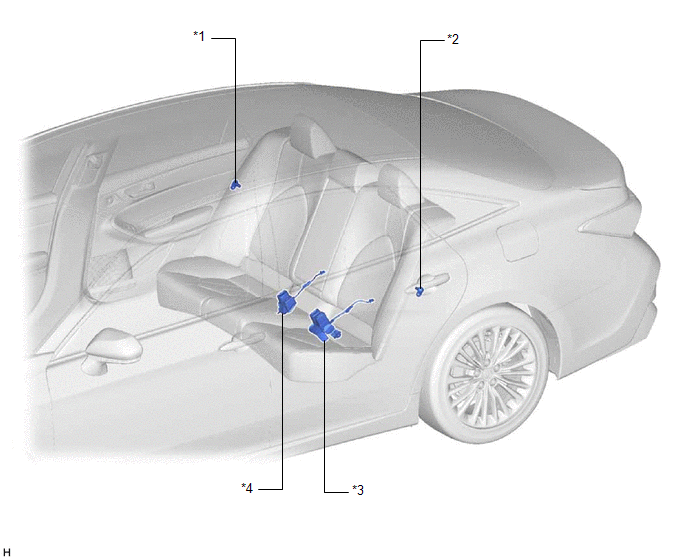

*1	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH)	*2	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)
*3	REAR SEAT INNER BELT ASSEMBLY LH	*4	REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
