System Diagram [08/2020 - ]

  1. for Front Seat
    GTY930069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

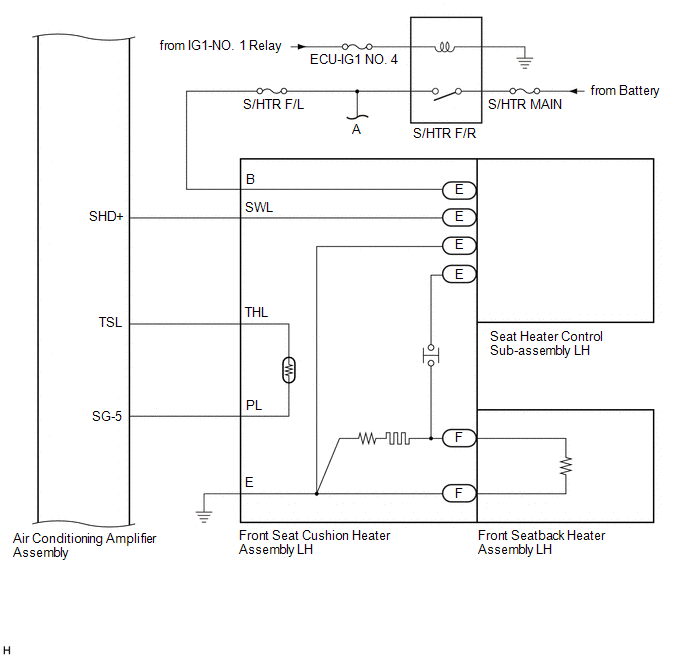

    GTY1015414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

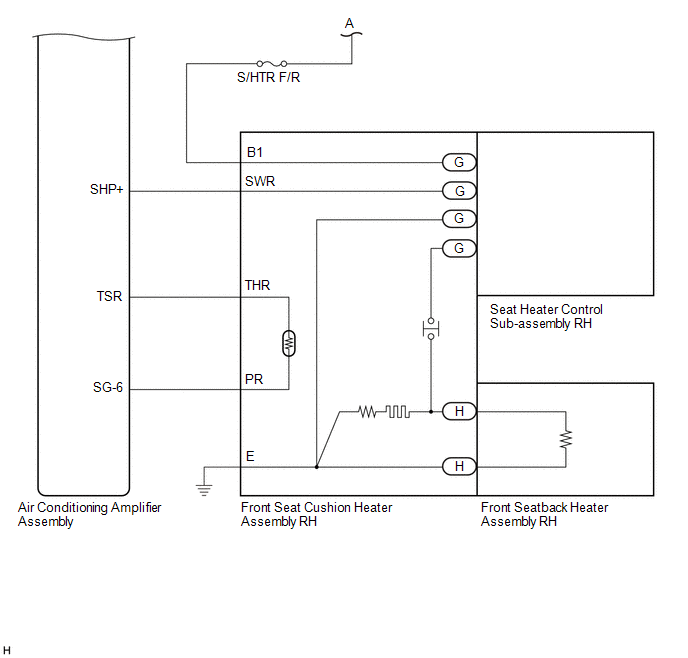

    GTY1016229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Rear Seat (w/ Rear Seat Heater)

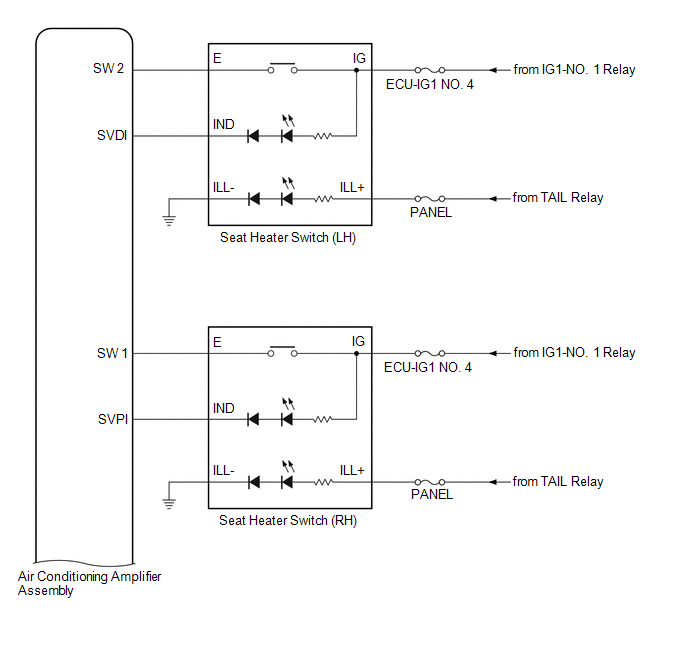

    GTY877918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

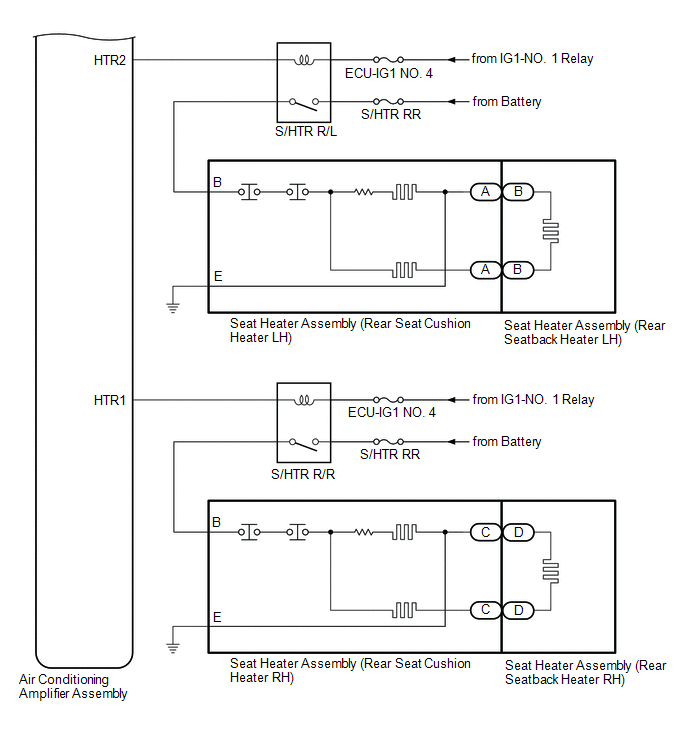

    GTY877068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
