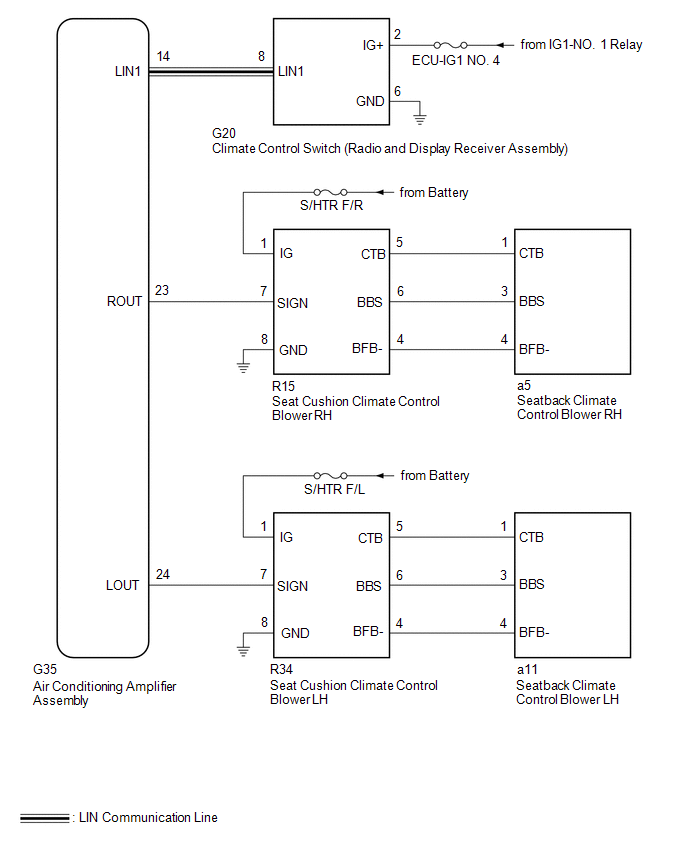

Climate Control Seat System does not Operate [04/2018 -]: Wiring Diagram

GTY854888

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
