Removal [04/2018 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - ]

  2. REMOVE STOP LIGHT SWITCH ASSEMBLY

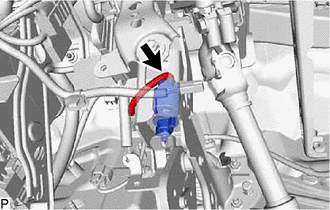

    1. Disconnect the connector.
      GTY917614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

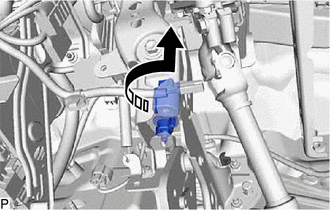

    2. Turn the stop light switch assembly counterclockwise as shown in the illustration and remove it.
      GTY916266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
