Stop Light Switch
>>
Components [04/2018 - ]
Components [04/2018 - ]

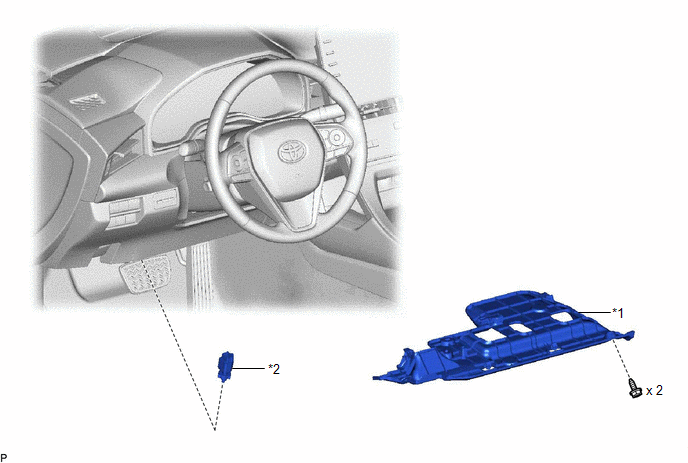

Fig 1: Stop Light Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*2
STOP LIGHT SWITCH ASSEMBLY
