Removal [08/2021 -]: Procedure

Refer to PROCEDURE - Step 1

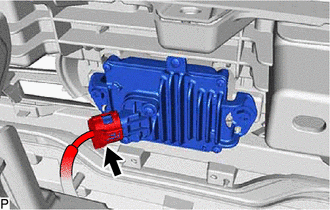

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

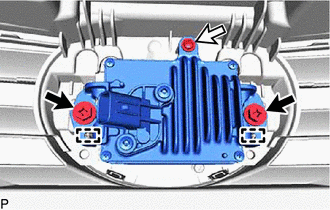

2. Remove the 2 bolts and screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Screw

3. Disengage the 2 guides and remove the millimeter wave radar sensor assembly.
   NOTE:

   Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
