Parts Location [08/2019 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

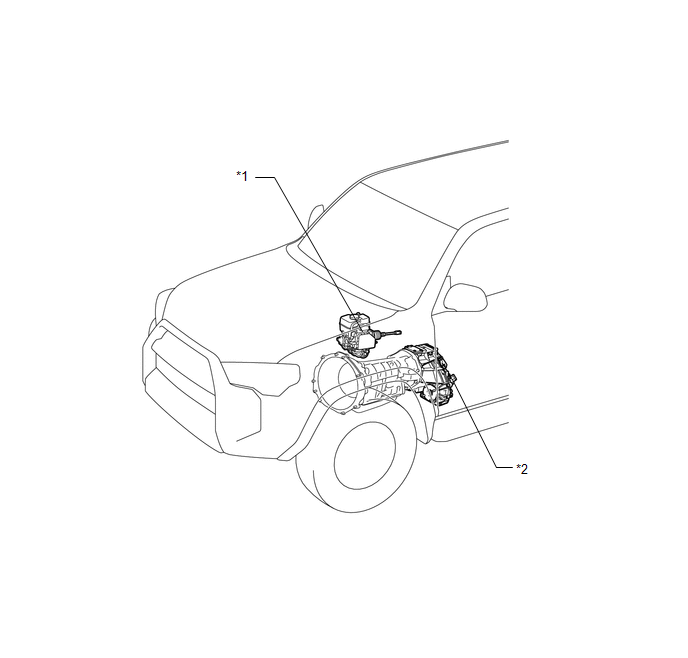

| *1 |
SKID CONTROL ECU (MASTER CYLINDER SOLENOID) |
*2 |
TRANSFER SHIFT ACTUATOR ASSEMBLY
- HIGH-LOW TRANSFER ACTUATOR
- HIGH-LOW TRANSFER SHIFT MOTOR
- HIGH-LOW TRANSFER LIMIT SWITCH
- CENTER DIFFERENTIAL LOCK ACTUATOR
- CENTER DIFFERENTIAL LOCK SHIFT MOTOR
- CENTER DIFFERENTIAL LOCK LIMIT SWITCH
- CENTER DIFFERENTIAL LOCK DETECTION SWITCH
|
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
DRIVER SIDE JUNCTION BLOCK ASSEMBLY
- ECU-B NO. 3 FUSE
- 4WD FUSE |
*2 |
TRANSFER POSITION SWITCH |
| *3 |
COMBINATION METER ASSEMBLY |
*4 |
DLC3 |
| *5 |
4 WHEEL DRIVE CONTROL ECU |
*6 |
ECM |
