Cruise Control Switch Circuit [08/2015 - 08/2019]: Procedure

WARNING: This page is about a different car, the 2019 Toyota 4Runner, 2018 Toyota 4Runner, 2017 Toyota 4Runner, and 2016 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE USING TECHSTREAM (CRUISE CONTROL SWITCH)
    1. Use the Data List to check if the cruise control switch is functioning properly (Refer to DATA LIST / ACTIVE TEST [08/2015 - 08/2019] ).
      CRUISE CONTROL

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Main SW M-CPU Cruise control switch (Main CPU) / ON or OFF ON: Cruise control switch on
      OFF: Cruise control switch off
      -
      Cancel Switch CANCEL switch signal / ON or OFF ON: CANCEL switch on
      OFF: CANCEL switch off
      -
      SET/COAST Switch -SET switch signal / ON or OFF ON: -SET switch on
      OFF: -SET switch off
      -
      RES/ACC Switch +RES switch signal / ON or OFF ON: +RES switch on
      OFF: +RES switch off
      -

      OK

      On screen, each item changes between ON and OFF according to above chart.

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    (Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] )

    Result:

    NG

    See step  2

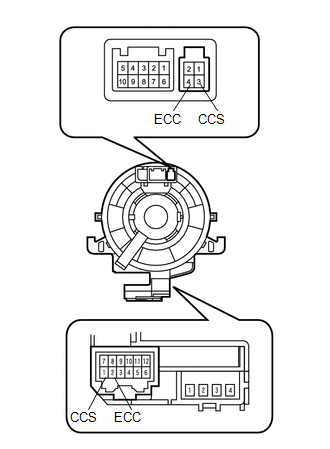

  2. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    1. Replace the spiral cable sub-assembly (Refer to REMOVAL [08/2015 - ] ).
      GTY225691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. If there are any defects as follows, replace the spiral cable sub-assembly with a new one: scratches, cracks, dents or chips on the connector or spiral cable sub-assembly.
    3. Check the spiral cable sub-assembly.
      1. Set the spiral cable sub-assembly to the center position (Refer to PROCEDURE - Step 4 ).
      2. Rotate the spiral cable sub-assembly 2.5 times clockwise and measure the resistance according to the value(s) in the table below. Then rotate the spiral cable sub-assembly 5 times counterclockwise and measure the resistance according to the value(s) in the table below.
        NOTE:

        As the spiral cable sub-assembly may break, do not rotate the spiral cable sub-assembly more than the specified amount.

        Standard Resistance

        Tester Connection Condition Specified Condition
        3 (CCS) - 1 (CCS) Always Below 1 Ω
        4 (ECC) - 2 (ECC)
      3. Set the spiral cable sub-assembly to the center position and rotate the spiral cable sub-assembly 2.5 times clockwise. Then, while rotating the spiral cable sub-assembly 5 times counterclockwise, measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        3 (CCS) - 1 (CCS) Always Below 1 Ω
        4 (ECC) - 2 (ECC)

    Result:

    NG

    REPLACE SPIRAL CABLE SUB-ASSEMBLY

    (Refer to REMOVAL [08/2015 - ] )

    Result:

    OK

    See step  3

  3. INSPECT CRUISE CONTROL SWITCH WIRE
    1. Disconnect the z9 spiral cable connector.
      GTY703172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the z10 switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z9-3 (CCS) - z10-3 (CCS) Always Below 1 Ω
      z9-4 (ECC) - z10-1 (ECC)
      z9-3 (CCS) - Body ground Always 10 kΩ or higher
      z9-4 (ECC) - Body ground

    Result:

    NG

    REPLACE CRUISE CONTROL SWITCH WIRE

    Result:

    OK

    See step  4

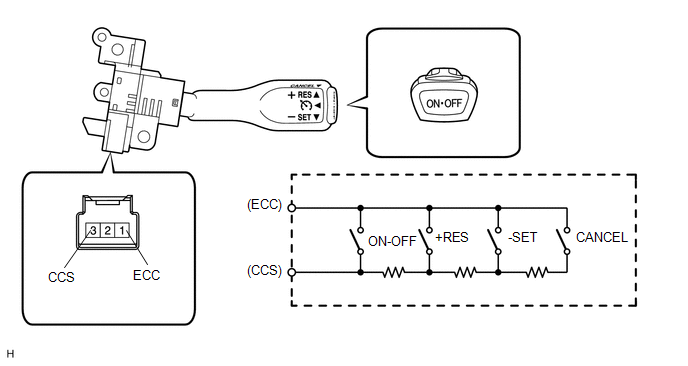

  4. INSPECT CRUISE CONTROL SWITCH
    1. Remove the cruise control switch (Refer to REMOVAL [08/2015 - 08/2019] ).
      GTY221620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      3 (CCS) - 1 (ECC) Cruise control switch on Below 2.5 Ω
      Cruise control switch off 1 MΩ or higher
      +RES switch held on 235 to 245 Ω
      -SET switch held on 617 to 643 Ω
      CANCEL switch held on 1509 to 1571 Ω

    Result:

    NG

    REPLACE CRUISE CONTROL SWITCH

    (Refer to REMOVAL [08/2015 - 08/2019] )

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - ECM AND BODY GROUND)
    1. Disconnect the F23 spiral cable connector.
    2. Disconnect the F50 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F23-1 (CCS) - F50-11 (CCS) Always Below 1 Ω
      F23-2 (ECC) - Body ground
      F23-1 (CCS) - Body ground Always 10 kΩ or higher
      RESULT

      Result Proceed to
      OK A
      NG B

    Result:

    REPLACE ECM

    (Refer to REMOVAL [08/2015 - ] )

    Result:

    REPAIR OR REPLACE HARNESS OR CONNECTOR
