Components [08/2015 - 08/2019]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 Toyota 4Runner, 2020 Toyota 4Runner, 2019 Toyota 4Runner, 2018 Toyota 4Runner, and 2017 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

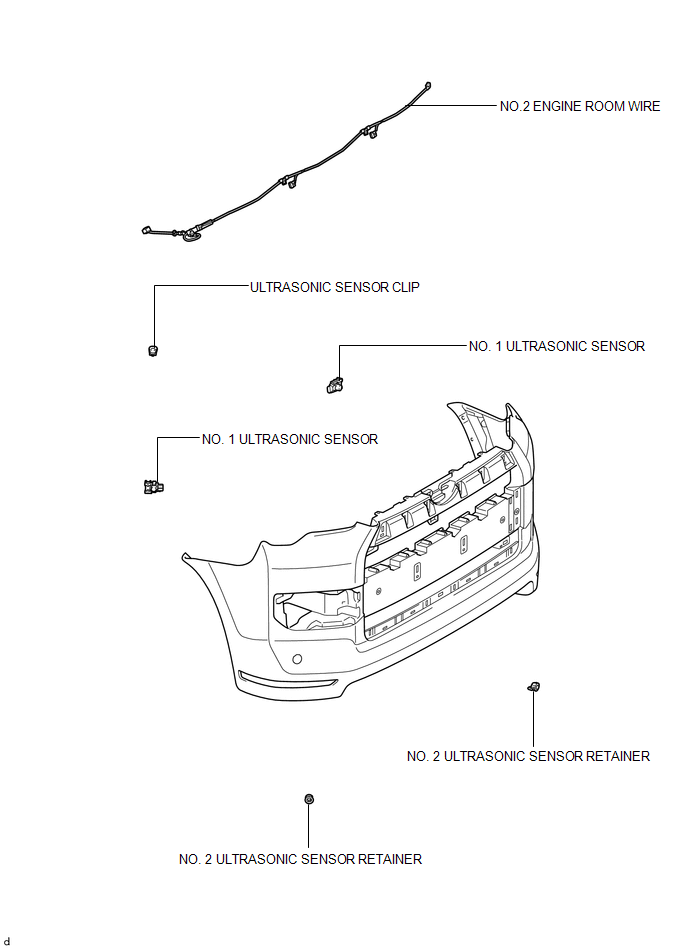

Fig 1: Front Bumper (W/ Intuitive Parking Assist System) Replacement Components (1 Of 4) [08/2015 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

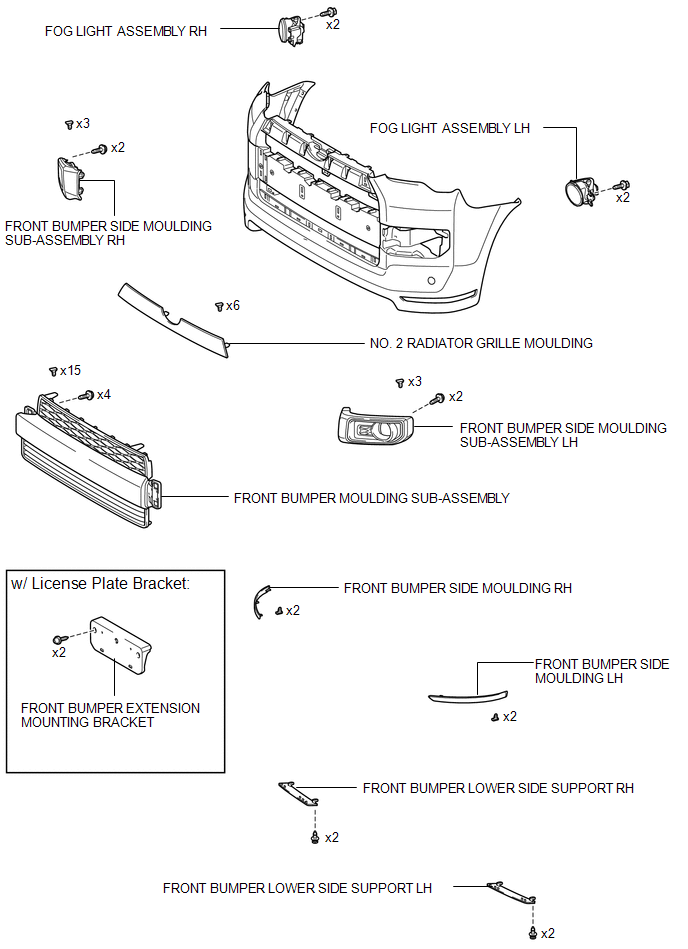

Fig 2: Front Bumper (W/ Intuitive Parking Assist System) Replacement Components With Torque Specifications (2 Of 4) [08/2015 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

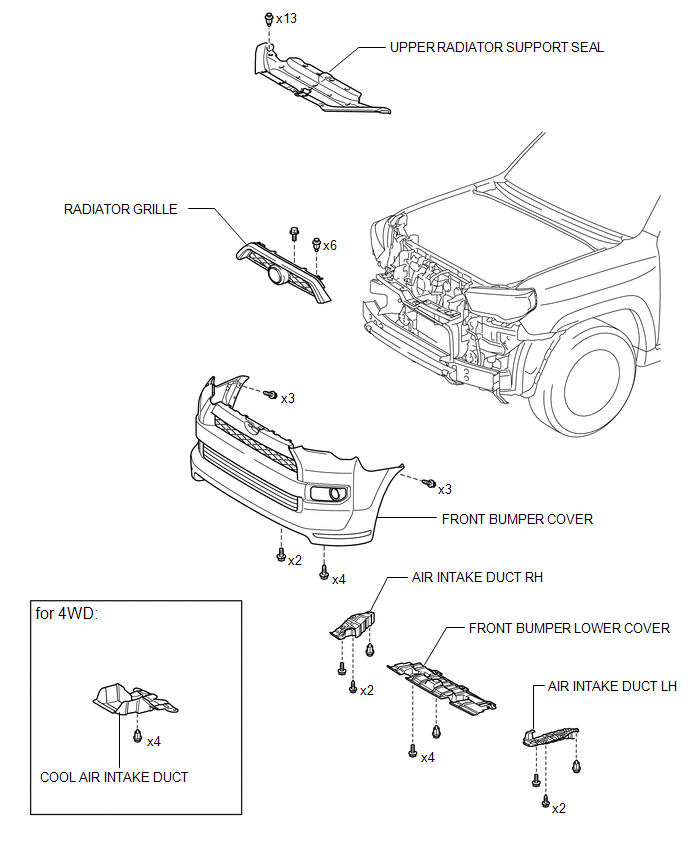

Fig 3: Front Bumper (W/ Intuitive Parking Assist System) Replacement Components (3 Of 4) [08/2015 - 08/2019]

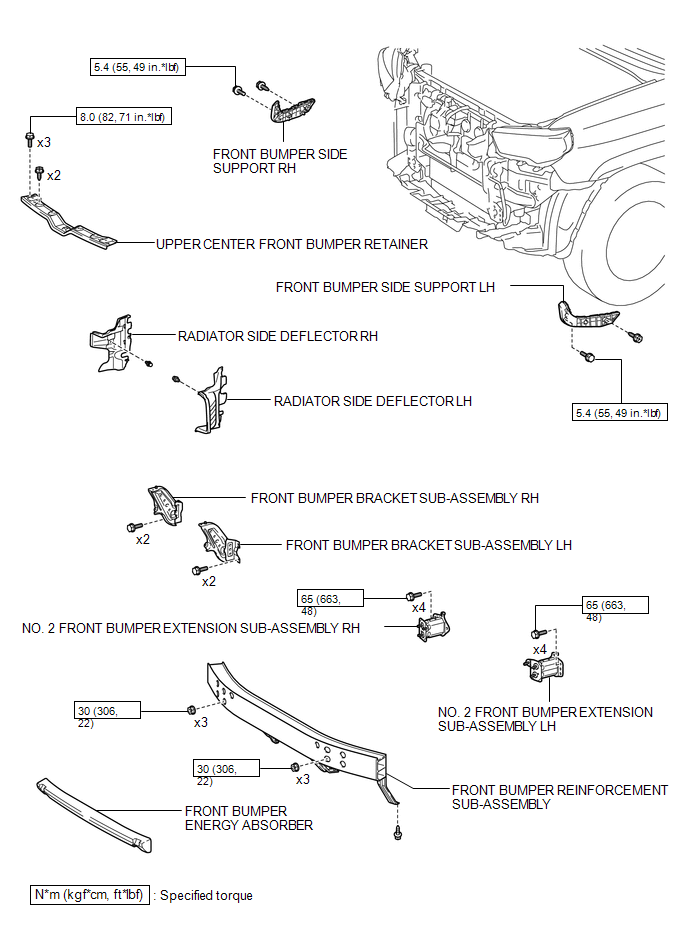

Fig 4: Front Bumper (W/ Intuitive Parking Assist System) Replacement Components (4 Of 4) [08/2015 - 08/2019]
